2x4 Architect LED Troffer Light

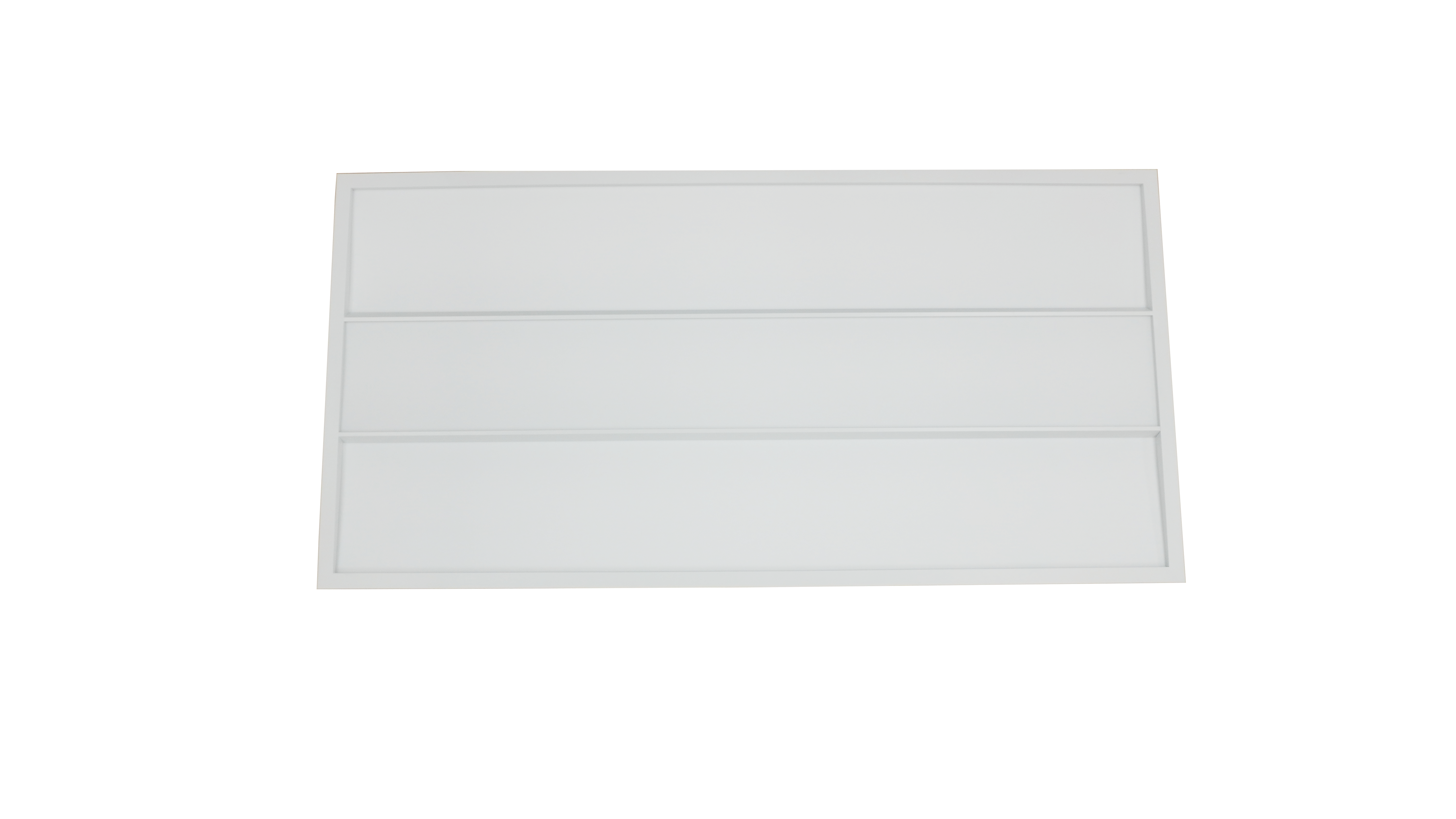

2x4 Architect LED Troffer Light – 3-Sided Luminous Design

Wattage Selectable: 20W / 30W / 40W | Lumens: 3300 / 4400 / 5500LM | 3CCT: 3500K / 4000K / 5000K | 120–277V | 0–10V Dimming | CRI 80+

Architectural Elegance Meets High-Performance Illumination

The SmartOn 2x4 Architect Troffer is engineered for modern commercial interiors where lighting performance and design aesthetics are equally important. Unlike traditional flat panels or edge-lit troffers, this fixture features an innovative 3-sided luminous structure, emitting soft, evenly distributed light from the center panel and both vertical side lenses, eliminating harsh shadows and creating a balanced, architectural ceiling appearance.

⚙️ Key Features

• Architectural 3-Sided Emission Design
  Light diffuses evenly from the center and side panels, enhancing ceiling depth while reducing glare and visual fatigue.

• Field-Selectable Wattage (20W / 30W / 40W)
  Easily switch between power levels to meet the lighting demands of different ceiling heights or room sizes—no need to stock multiple SKUs.

• Tunable White Light (3500K / 4000K / 5000K)
  One fixture, three color temperatures—tailor the ambiance from warm white to bright daylight with the flip of a switch.

• 0–10V Dimming
  Smooth flicker-free dimming down to 10% using industry-standard dimmers.

• High Output & Efficiency
  Up to 5500 lumens with CRI 80+ ensures true color performance and visual clarity in task-driven environments.

• Versatile Input Voltage
  Operates on universal 120–277V, making it suitable for both commercial and institutional grid ceiling installations.

• Certified Quality
  ETL listed for safety, performance, and eligibility for utility rebates.

🏢 Application Scenarios

Designed for architectural environments requiring both functional and aesthetic lighting, this 2x4 architect troffer is ideal for:

• 🏢 Executive Offices & Conference Rooms

• 🏫 Classrooms, Colleges & Learning Facilities

• 🏥 Hospitals, Clinics & Laboratories

• 🛍️ Retail Stores & Galleries

• 🏛️ Government & Financial Institutions

• 🏬 Reception Areas, Hallways & Open-Plan Offices

Perfect for use in standard T-grid drop ceilings, new construction, or retrofit projects in both commercial and institutional settings.
