• EMCOD MLE-P Series Transformer, Electronic J-box Driver, 120Vac input/12Vdc output, electronic phase dimmable
  • EMCOD MLE-P Series Transformer, Electronic J-box Driver, 120Vac input/12Vdc output, electronic phase dimmable
1 2

EMCOD

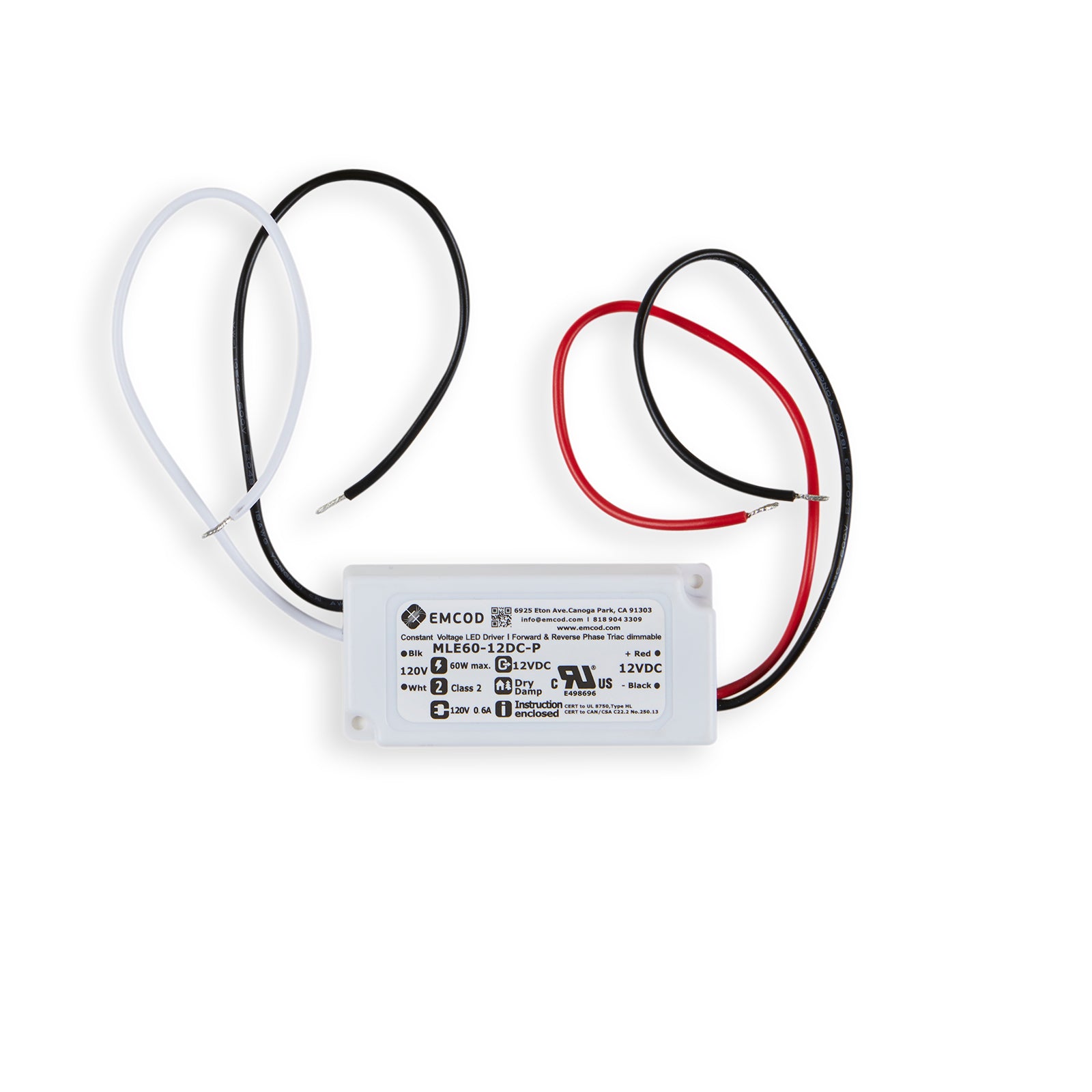

EMCOD MLE-P Series Transformer, Electronic J-box Driver, 120Vac input/12Vdc output, electronic phase dimmable

EMCOD MLE-P Series Transformer, Electronic J-box Driver, 120Vac input/12Vdc output, electronic phase dimmable

MLE60-12DC-P

Model
$42.98 USD
$42.98 USD
Oferta Agotado

196 en existencias

The EMCOD MLE-P Series is Extremely Compact Low profile Constant Voltage, Triac (Phase) Dimmable Electronic LED Driver for Forward and Reverse Phase Dimmers. 5% minimum load. Over load, Short circuit protection. Excellent Line and Load regulation. Wide variety of compatible dimmers, flicker free dimming. Fit in 4” Junction Box. US and Canada UL Recognized, Class 2, UL8750 and UL1310 certified.



EMCOD MLE-P Series Transformer, Electronic J-box Driver, 120Vac input/12Vdc output, electronic phase dimmable




model max.load input output dimensions(in)
MLE60-12DC-P 60W 120Vac
 24Vdc 1.57x3.3x0.98





• Dimmable with compatible MLV, ELV, CL dimmers
• Temperature class B(130°C)
• Input leads are 18AWG 600V
• Output leads are 18AWG 300V
• Leads max. operational temperature is 105°C
