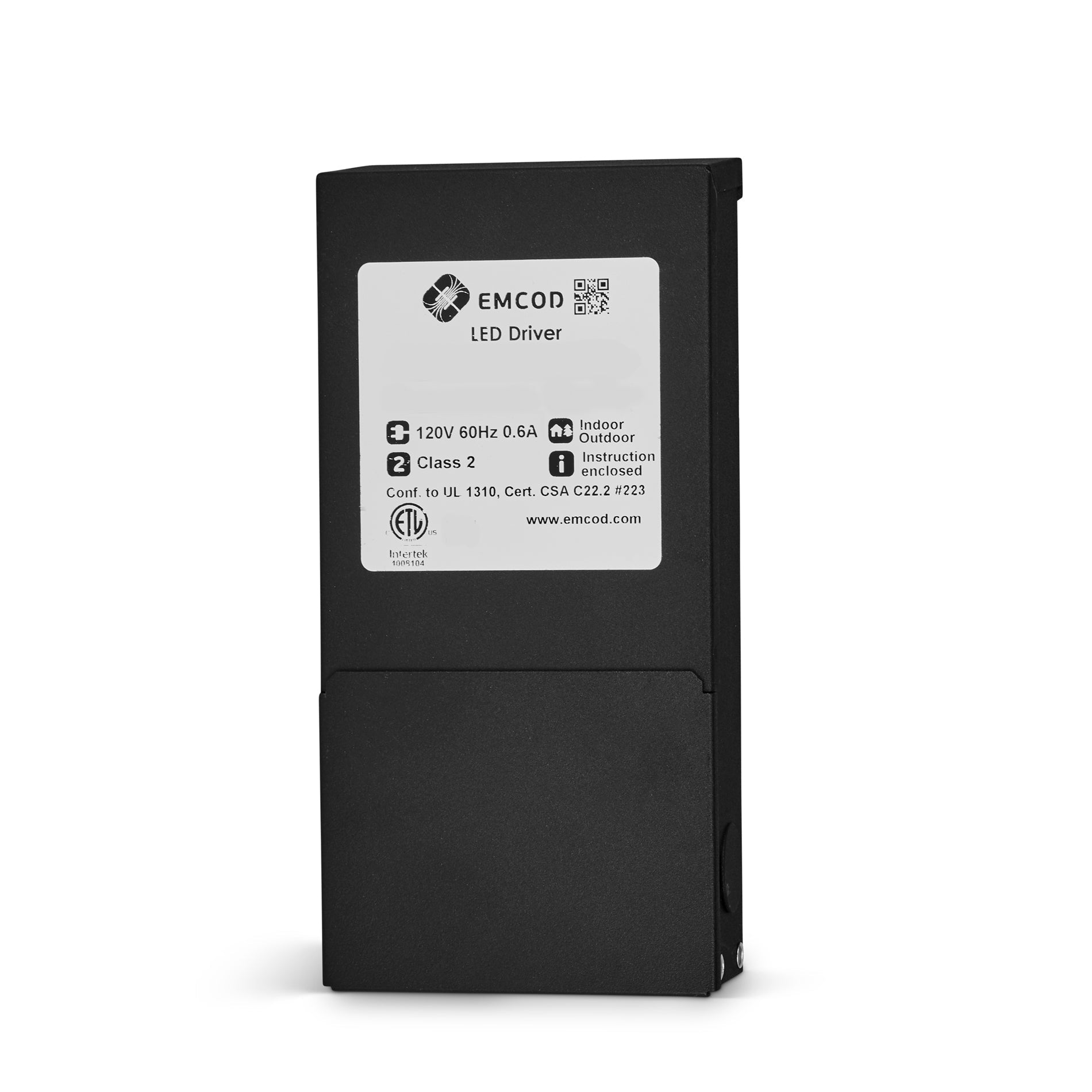

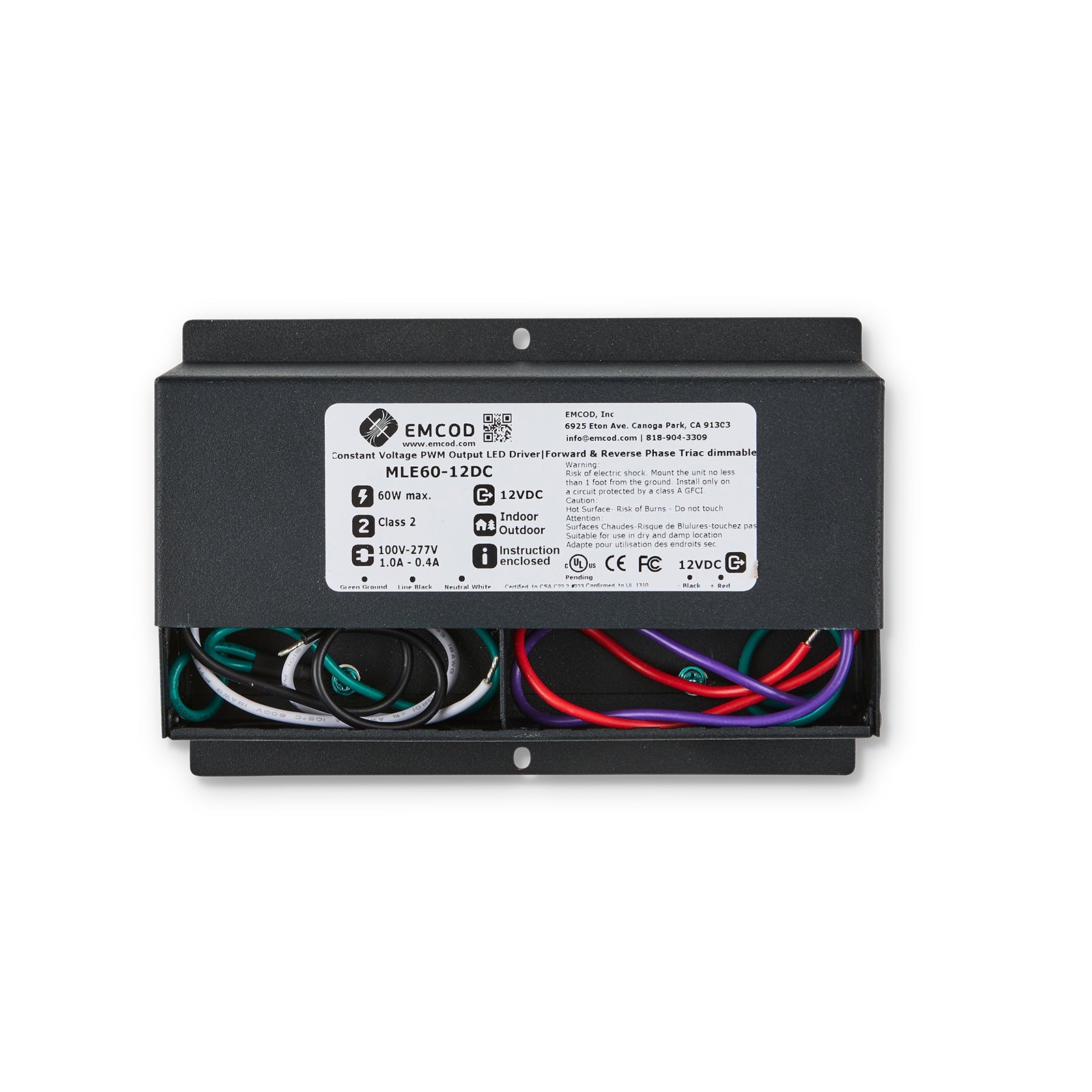

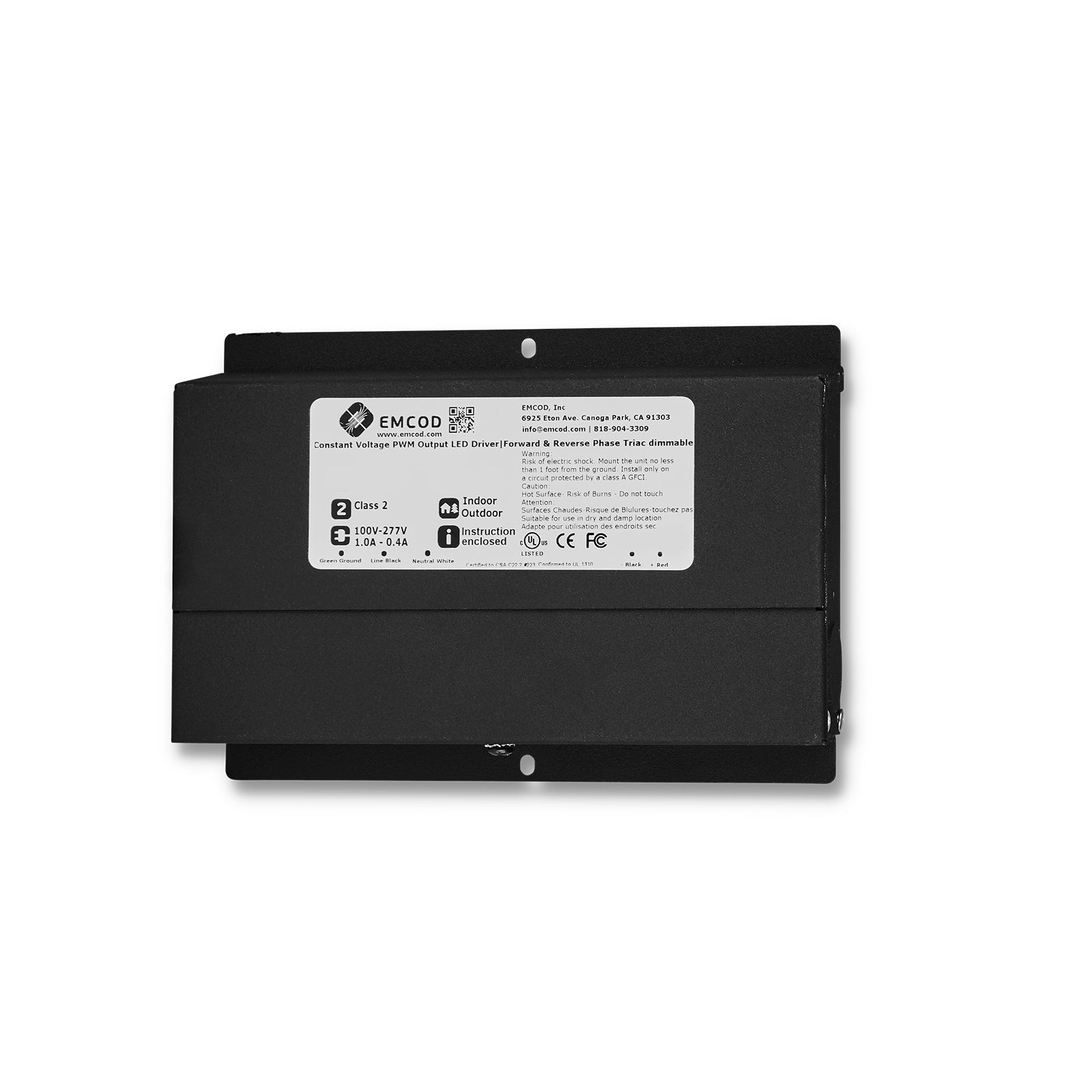

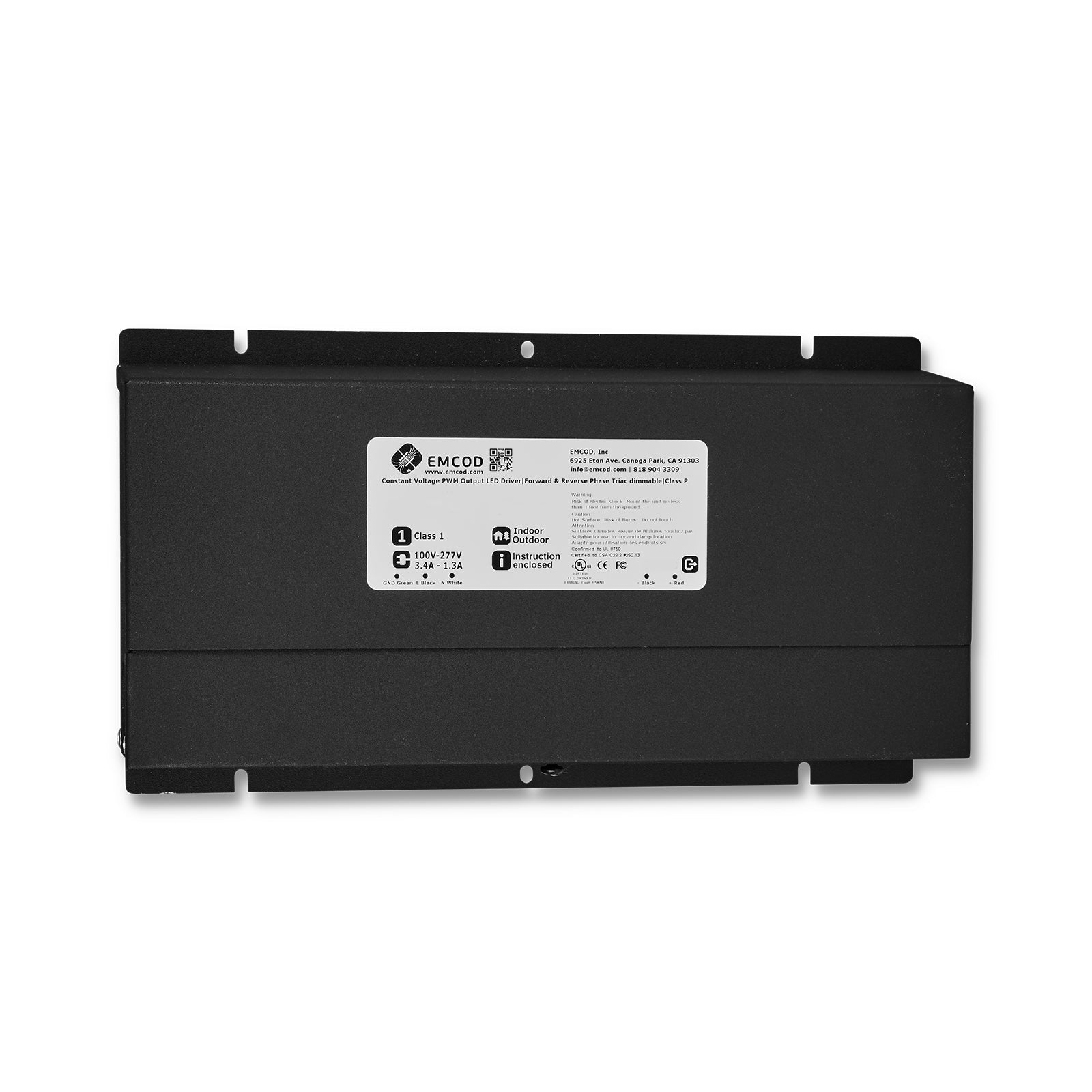

EMCOD MLE-UD Series 5 Dimming Types Transformer, Main-LED Electronic Driver, 110-277Vac input/24Vdc output, constant voltage

EMCOD MLE-UD Series 5 Dimming Types Transformer, Main-LED Electronic Driver, 110-277Vac input/24Vdc output, constant voltage

MLE30-24DC-UD

Model
$74.39 USD
$74.39 USD
Oferta Agotado

100 en existencias

The EMCOD MLE-UD Series is an Universal Constant Voltage, PWM output, Triac (Phase), 0/1-10V, Resistor, PWM Control, 5 Dimming types Electronic LED Driver. 5% minimum load. Overload, Short circuit protection. Excellent Line and Load regulation. Wide variety of compatible dimmers, flicker free dimming. Dry, Damp and Wet Location.



EMCOD MLE-UD Series 5 Dimming Types Transformer, Main-LED Electronic Driver, 110-277Vac input/24Vdc output, constant voltage




model max.load class2 input output dimensions(in)
MLE30-24DC-UD 30W Y 110-277Vac, 50/60Hz
 24Vdc 4.47x6.79x1.38
MLE60-24DC-UD 60W Y 110-277Vac, 50/60Hz 24Vdc 4.47x6.79x1.38
MLE80-24DC-UD 80W Y 110-277Vac, 50/60Hz 24Vdc 5.16x7.73x1.54
MLE96-24DC-UD 96W Y 110-277Vac, 50/60Hz 24Vdc 5.16x7.73x1.54
MLE120-24DC-UD 120W N 110-277Vac, 50/60Hz 24Vdc 5.16x7.73x1.54
MLE150-24DC-UD 150W N 110-277Vac, 50/60Hz 24Vdc 5.2x9.99x1.82
MLE200-24DC-UD 200W N 110-277Vac, 50/60Hz 24Vdc 5.2x9.99x1.82
MLE300-24DC-UD 300W N 110-277Vac, 50/60Hz 24Vdc 5.2x9.99x1.82






• PWM output. Dimmable with any ELV, MLV, CL, forward or reverse phase.
• Input leads are 18AWG 600V
• Output leads are 16AWG 300V
• Leads max. operational temperature is 105°C
