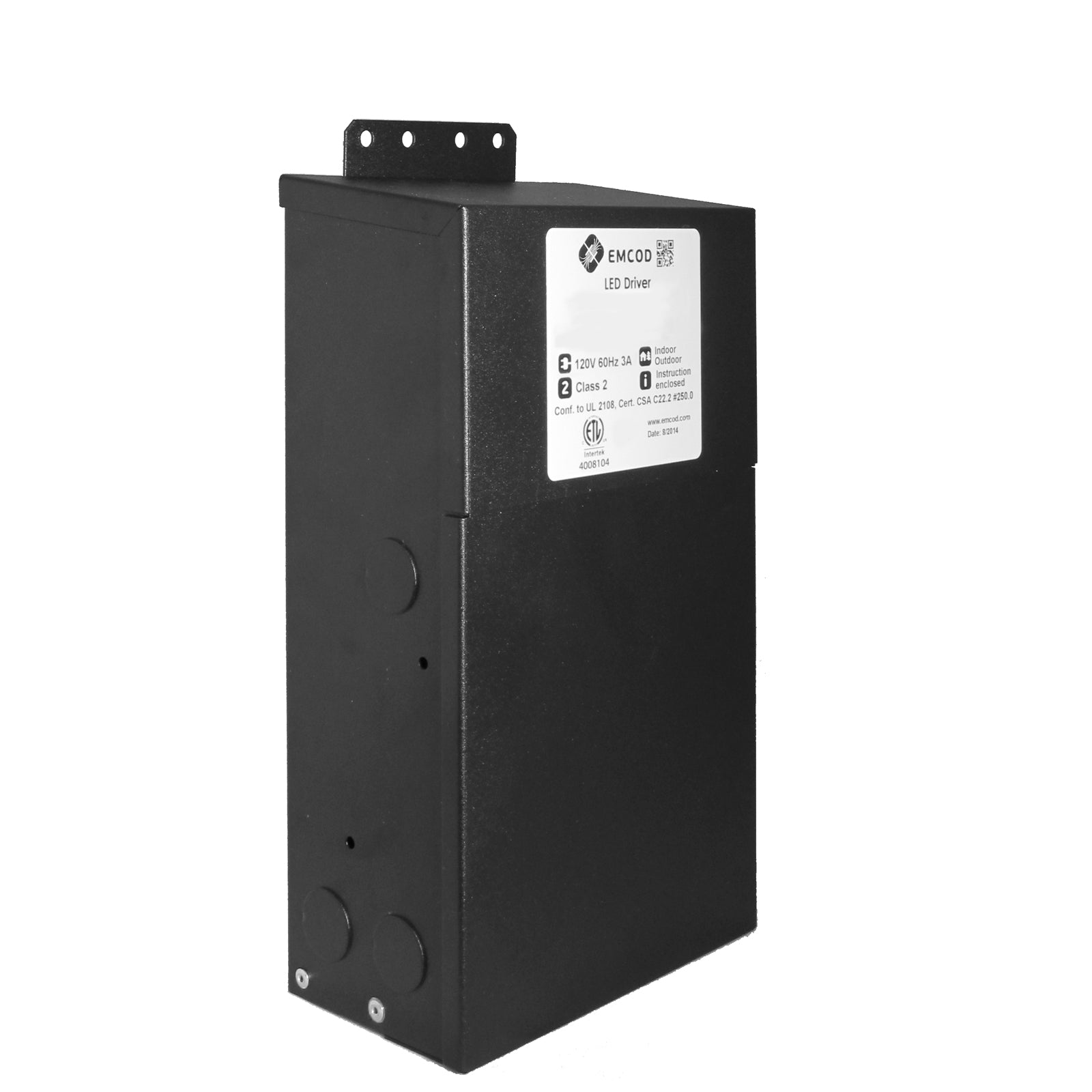

EMCOD EC2 multi-tap series transformer, magnetic LED driver, 120Vac input/12Vdc output, phase dimmable
无法加载取货服务可用情况
150 Watts / 3x12V dc output
The EMCOD EC2 - Indoor/Outdoor Series is a dimmable, magnetic, multi-tap hard wire power supplies, which can supply 12V DC voltage to any kind of low voltage fixtures: LED, Halogen, Xenon an so on. The AC units have a boost tap on the primary side compensates wire drop voltage on a long run and maintains a brightness of your lights. Primary manually reset circuit breaker on all our products is standard. Secondary protection is optional for AC and standard for all DC products. Two section bobbin provides complete insulation between primary and secondary sides. Encapsulated with polyester resin for whisper quiet operation. Small dimensions and weight saves space and lowers an installation cost. The outdoor enclosure rated NEMA 3R or IP24.
| model | max load | input | output | dimensions(in) |
| EM3-150S12DC | 150W |
120Vac |
3x12Vdc | 10.29x5.69x3.43 |
| EM4-200S12DC | 200W | 120Vac | 4x12Vdc | 10.29x5.69x3.43 |
| EM6-300S12DC | 300W | 120Vac | 6x12Vdc | 10.29x5.69x3.43 |
• Dimmable with any LV magnetic dimmer as long as you cover dimmer’s min load.
• Temperature class B(130°C)
• Two section bobbin completely separated primary and secondary windings
• Input leads are 18AWG 600V
• Output leads: Terminal Block
• Leads max. operational temperature is 105°C
• Thermal manually reset primary breaker 5A
• Thermal manually reset secondary breaker 5A per circuit
