EMCOD ML Series Transformer, magnetic LED driver, 120Vac input/24Vdc output, phase dimmable
常规价格 $45.50
常规价格 促销价 $45.50

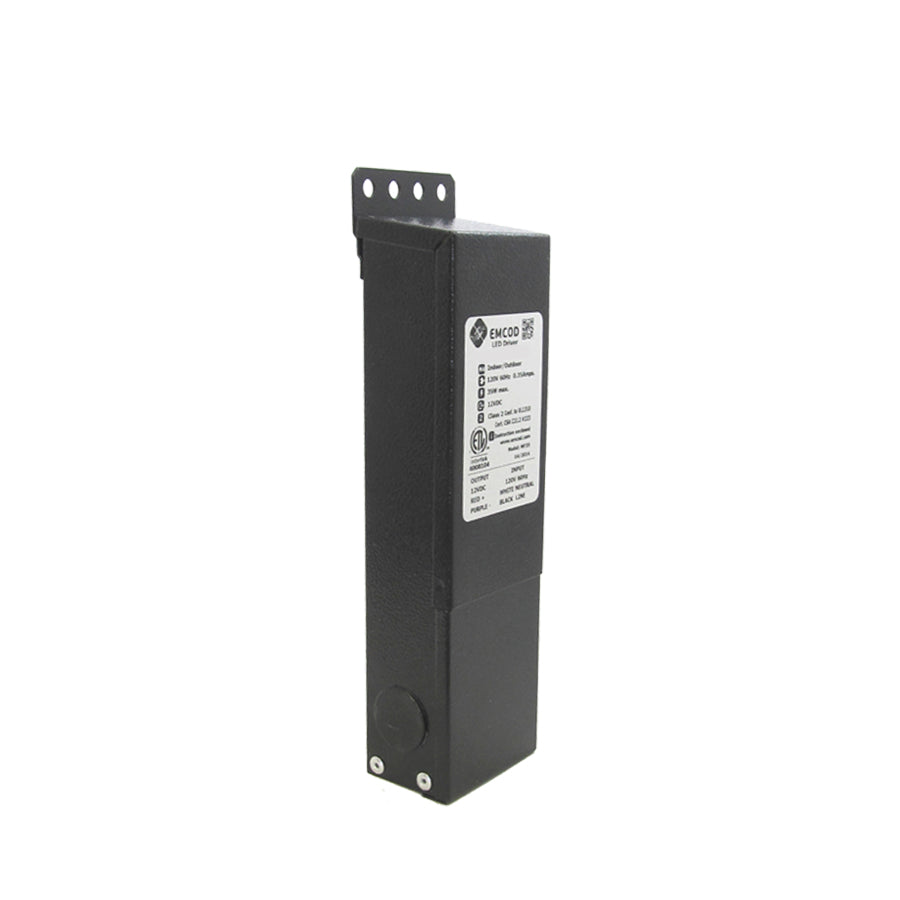

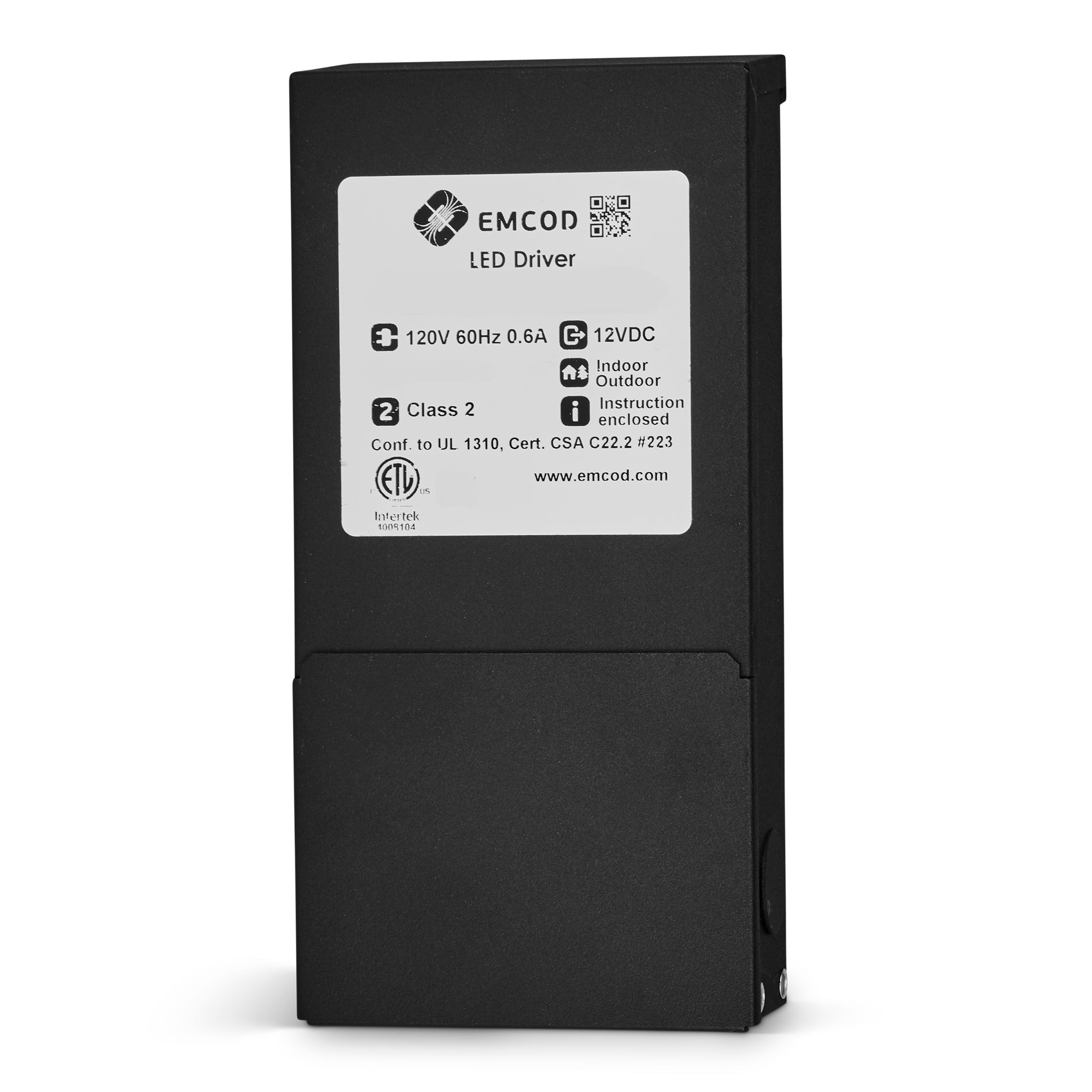

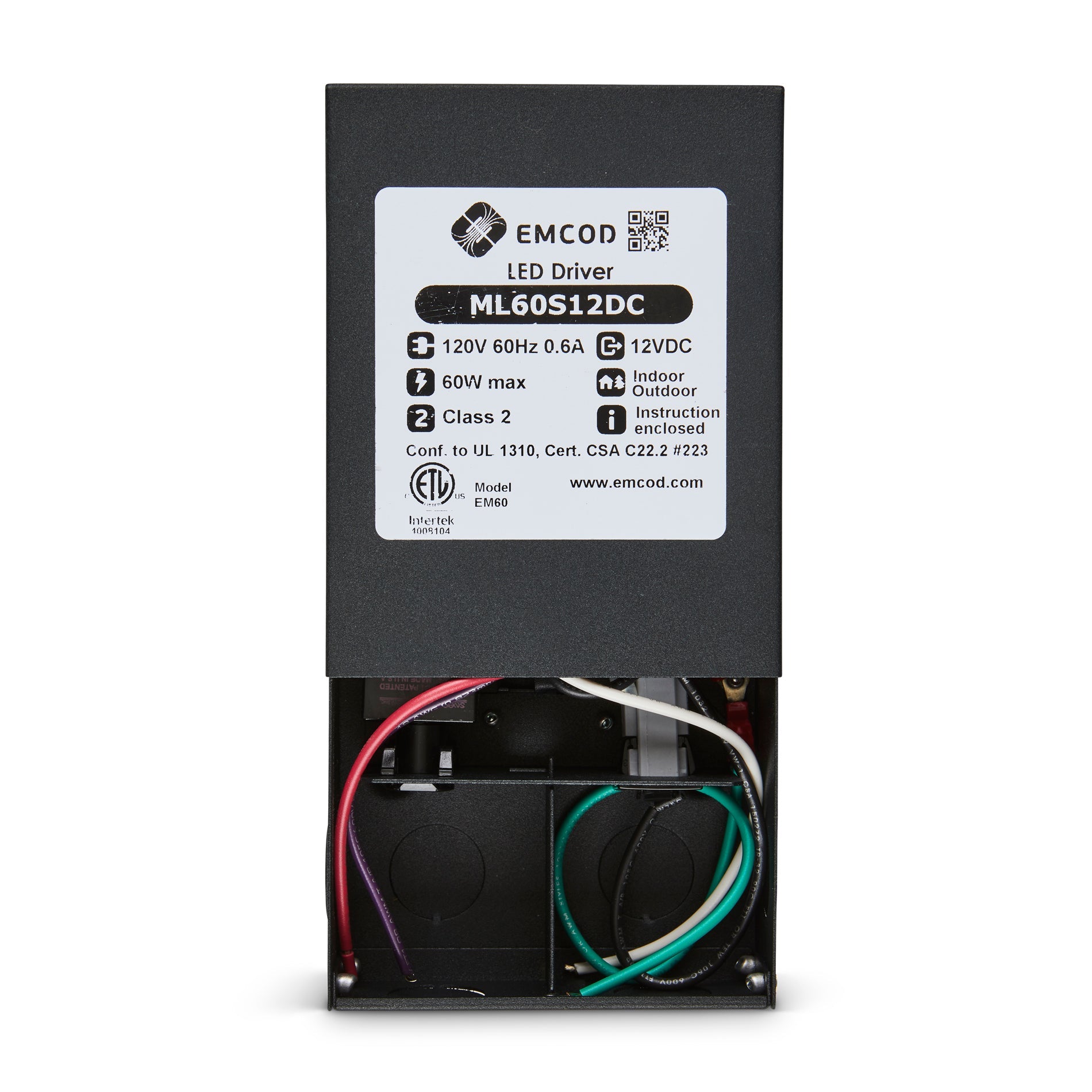

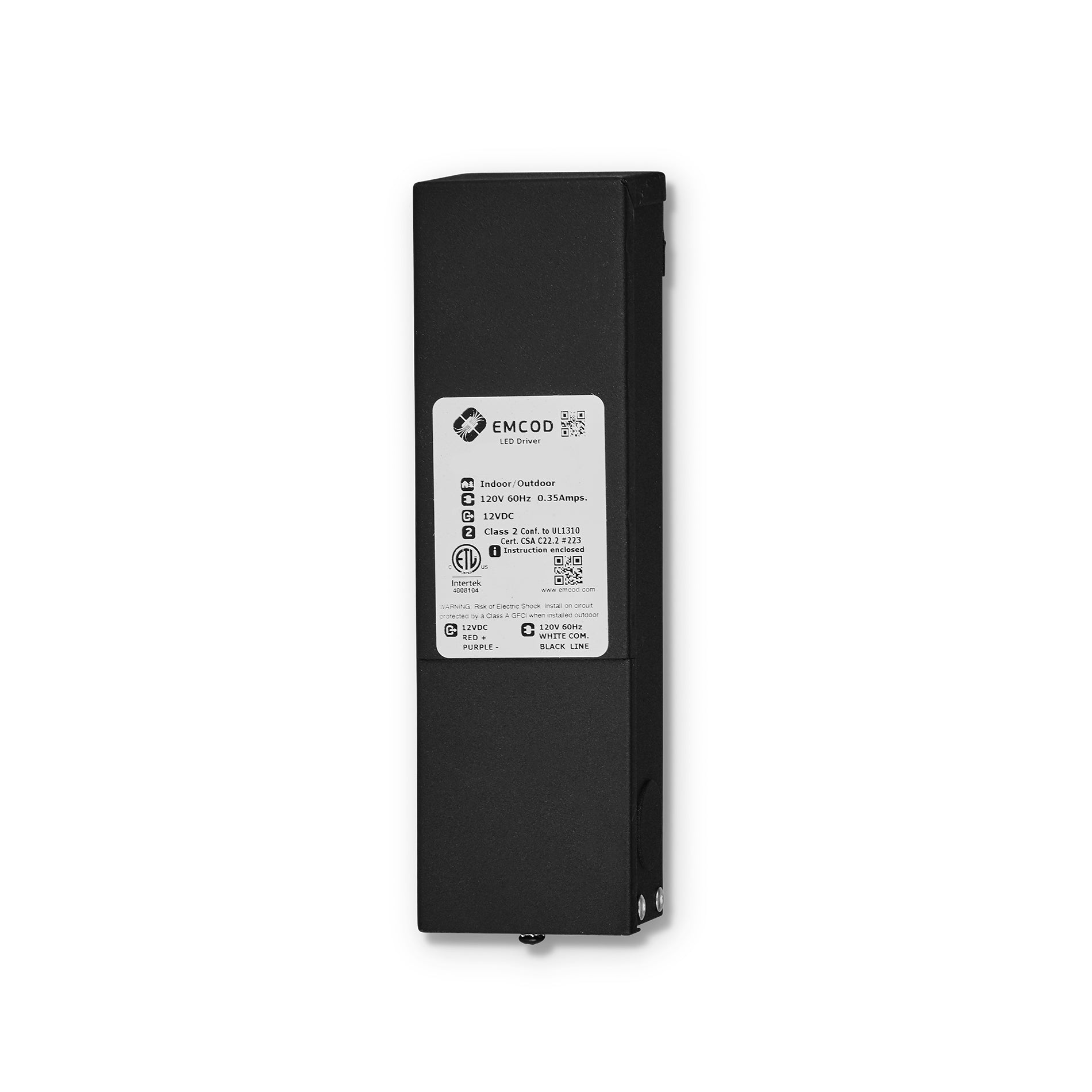

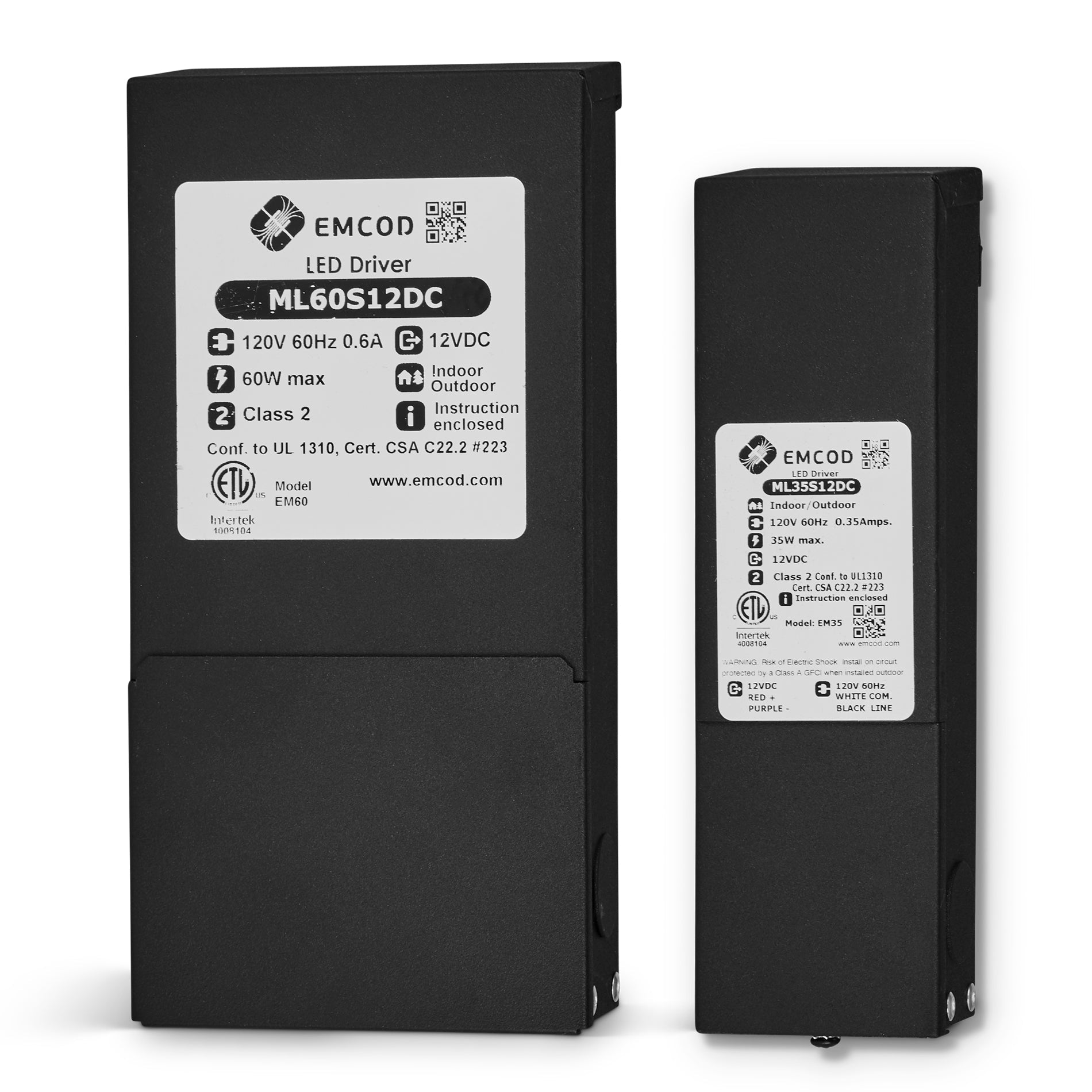

The EMCOD ML Series transformer is one of the most popular magnetic LED Driver on the market due to the low profile design and triac/phase dimmable option. The transformer core and special low drop voltage rectifier are designed to lower losses and makes the ML series very energy efficient with a very low temperature rise. Our ML series comes standard with primary and secondary self-reset thermal circuit breakers, hardwire input and output lead wires. Our transformers can be fully loaded and have excellent load regulation.


EMCOD ML Series Transformer, magnetic LED driver, 120Vac input/24Vdc output, phase dimmable


model max load input output dimensions(in)
10W 120Vac
24Vdc 7x2.11x1.54
20W 120Vac 24Vdc 7x2.11x1.54
ML35S24DC 35W 120Vac 24Vdc 7x2.11x1.54
ML40S24DC 40W 120Vac 24Vdc 7x2.11x1.54
ML50S24DC 50W 120Vac 24Vdc 7x2.11x1.54
ML60S24DC 60W 120Vac 24Vdc 8.13x3.93x1.59
ML75S24DC 75W 120Vac 24Vdc 8.13x3.93x1.59
ML100S24DC 100W 120Vac 24Vdc 8.13x3.93x1.59


• Dimmable with compatible MLV, ELV, CL dimmers
• Temperature class B(130°C) Input leads are 18AWG 600V
• Output leads are 18AWG 300V
• Leads max. operational temperature is 105°C
• Thermal self reset primary breaker
• Thermal self reset secondary breaker
