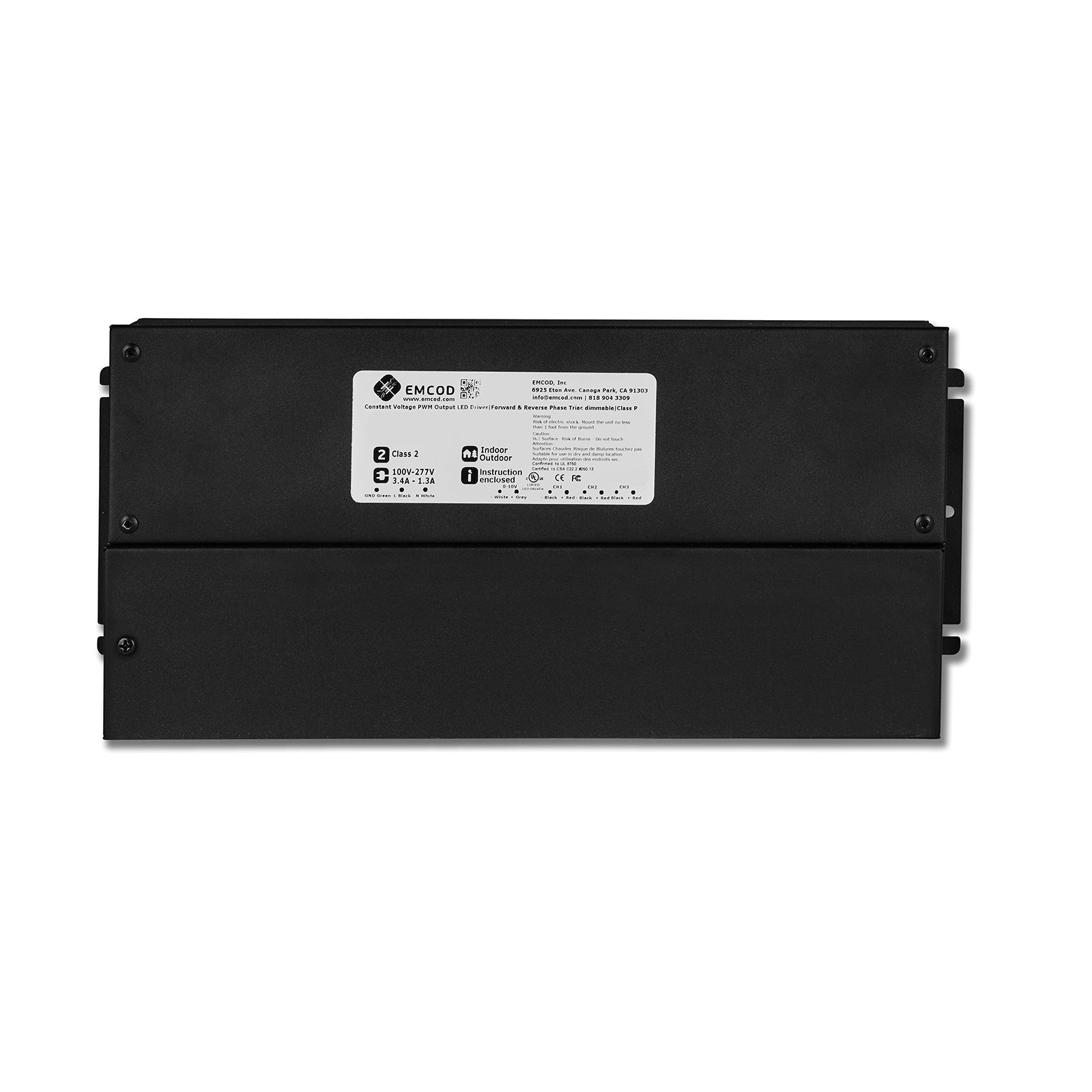

EMCOD MLE-UD-C2 Series Transformer, MULTI Channel Class 2 LED Electronic Driver, 110-277Vac input/12Vdc output, 5 dimming types, constant voltage

EMCOD MLE-UD-C2 Series Transformer, MULTI Channel Class 2 LED Electronic Driver, 110-277Vac input/12Vdc output, 5 dimming types, constant voltage

MLE180C2-12UD

Model
$229.68 USD
$229.68 USD
Promotion Épuisé

200 en stock

The EMCOD MLE-UD C2 Series is a Class 2 dimmable LED Driver, Universal Constant Voltage, PWM output, Triac (Phase), 0/1-10V, Resistor, PWM Control, 5 in 1 Dimmable Electronic LED Driver is available in 2 - 5 circuit configurations. 5% minimum load, Overload, Short circuit protection. Excellent Line and Load regulation. Wide variety of compatible dimmers, flicker free dimming. Dry, Damp and Wet Location.



EMCOD MLE-UD-C2 Series Transformer, MULTI Channel Class 2 LED Electronic Driver, 110-277Vac input/12Vdc output, 5 dimming types, constant voltage




model max.load input output dimensions(in)
MLE180C2-12UD 3x60W 110-277Vac
 12Vdc 5.04x10.94x1.81
MLE300C2-12UD 5x60W 110-277Vac 12Vdc 5.04x10.94x1.81





• Dimmable with triac forward and reverse phase, 0/1-10V , resistor, PWM
• Temperature class B(130°C)
• Input leads are 18AWG 600V
• Output leads are 16AWG 300V
• Leads max. operational temperature is 105°C per circuit
