  2. EMCOD EM Series indoor/outdoor transformer, magnetic LED driver, 120Vac input/12Vdc output, phase dimmable

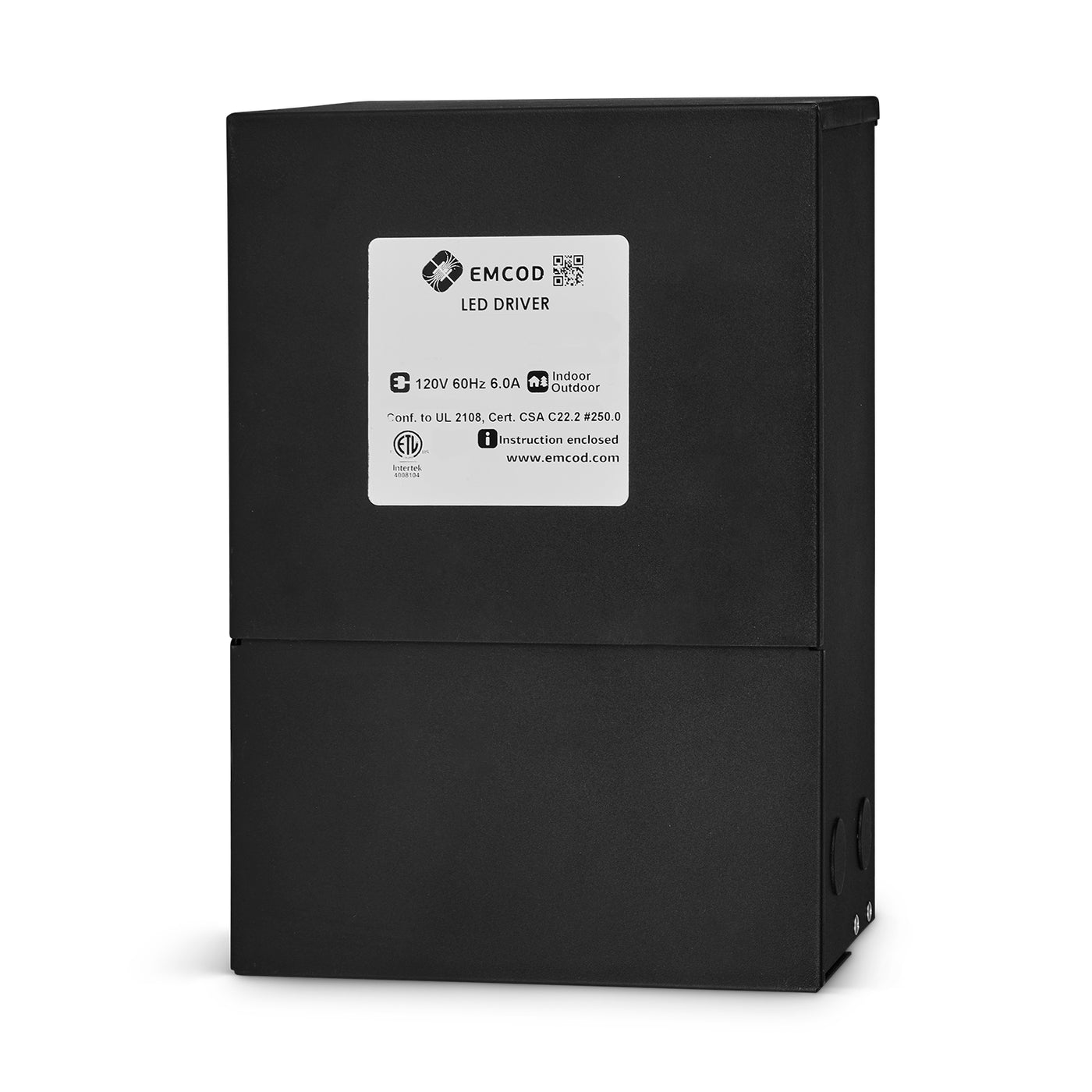

EMCOD EM Series indoor/outdoor transformer, magnetic LED driver, 120Vac input/12Vdc output, phase dimmable

Product Description
Model
$97.02
Maximum quantity available reached.

The EMCOD EM - Indoor/Outdoor Series is a dimmable, magnetic, hard wire power supplies, which can supply 12V DC voltage to any kind of low voltage fixtures: LED, Halogen, Xenon an so on. The AC units have a boost tap on the primary side compensates wire drop voltage on a long run and maintains a brightness of your lights. Primary manually reset circuit breaker on all our products is standard. Secondary protection is optional for AC and standard for all DC products. Two section bobbin provides complete insulation between primary and secondary sides. Encapsulated with polyester resin for whisper quiet operation. Small dimensions and weight saves space and lowers an installation cost. The outdoor enclosure rated NEMA 3R or IP24.



EMCOD EM Series indoor/outdoor transformer, magnetic LED driver, 120Vac input/12Vdc output, phase dimmable




model max load input output dimensions(in)
EM150S12DC 150W 120Vac
 12Vdc 8x4.1x3.24
EM200S12DC 200W 120Vac 12Vdc 8x4.1x3.24
EM250S12DC 250W 120Vac 12Vdc 8x4.1x3.24
EM300S12DC 300W 120Vac 12Vdc 8x4.1x3.24
EM600S12DC 600W 120Vac 12Vdc 10.29X6.79X4.68






• Dimmable with compatible MLV, ELV, CL dimmers
• Temperature class B(130°C)
• Two section bobbin completely separated primary and secondary windings
• Input leads are 18AWG 600V
• Output leads are 12AWG 300V
• Leads max. operational temperature is 105°C
• Thermal manually reset secondary breaker 20A
• Magnetic manually reset secondary breaker 20A





Sku: EM150S12DC
Vendor: EMCOD
