EMCOD ML Series Transformer, magnetic LED driver, 120Vac input/12Vdc output, phase dimmable
EMCOD ML Series Transformer, magnetic LED driver, 120Vac input/12Vdc output, phase dimmable
EMCOD ML Series Transformer, magnetic LED driver, 120Vac input/12Vdc output, phase dimmable
EMCOD ML Series Transformer, magnetic LED driver, 120Vac input/12Vdc output, phase dimmable
EMCOD ML Series Transformer, magnetic LED driver, 120Vac input/12Vdc output, phase dimmable
EMCOD ML Series Transformer, magnetic LED driver, 120Vac input/12Vdc output, phase dimmable
EMCOD ML Series Transformer, magnetic LED driver, 120Vac input/12Vdc output, phase dimmable
EMCOD ML Series Transformer, magnetic LED driver, 120Vac input/12Vdc output, phase dimmable
EMCOD ML Series Transformer, magnetic LED driver, 120Vac input/12Vdc output, phase dimmable
EMCOD ML Series Transformer, magnetic LED driver, 120Vac input/12Vdc output, phase dimmable
EMCOD ML Series Transformer, magnetic LED driver, 120Vac input/12Vdc output, phase dimmable
EMCOD ML Series Transformer, magnetic LED driver, 120Vac input/12Vdc output, phase dimmable

EMCOD ML Series Transformer, magnetic LED driver, 120Vac input/12Vdc output, phase dimmable

SKU: ML10S12DC
Price
$54.60
Taxes and shipping calculated at checkout
Model: 1Pack-10 Watts

Product variant with selected options does not exist!
In stock and ready for shipping

Frequently Bought Together

We Accept

American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Visa

About This Item

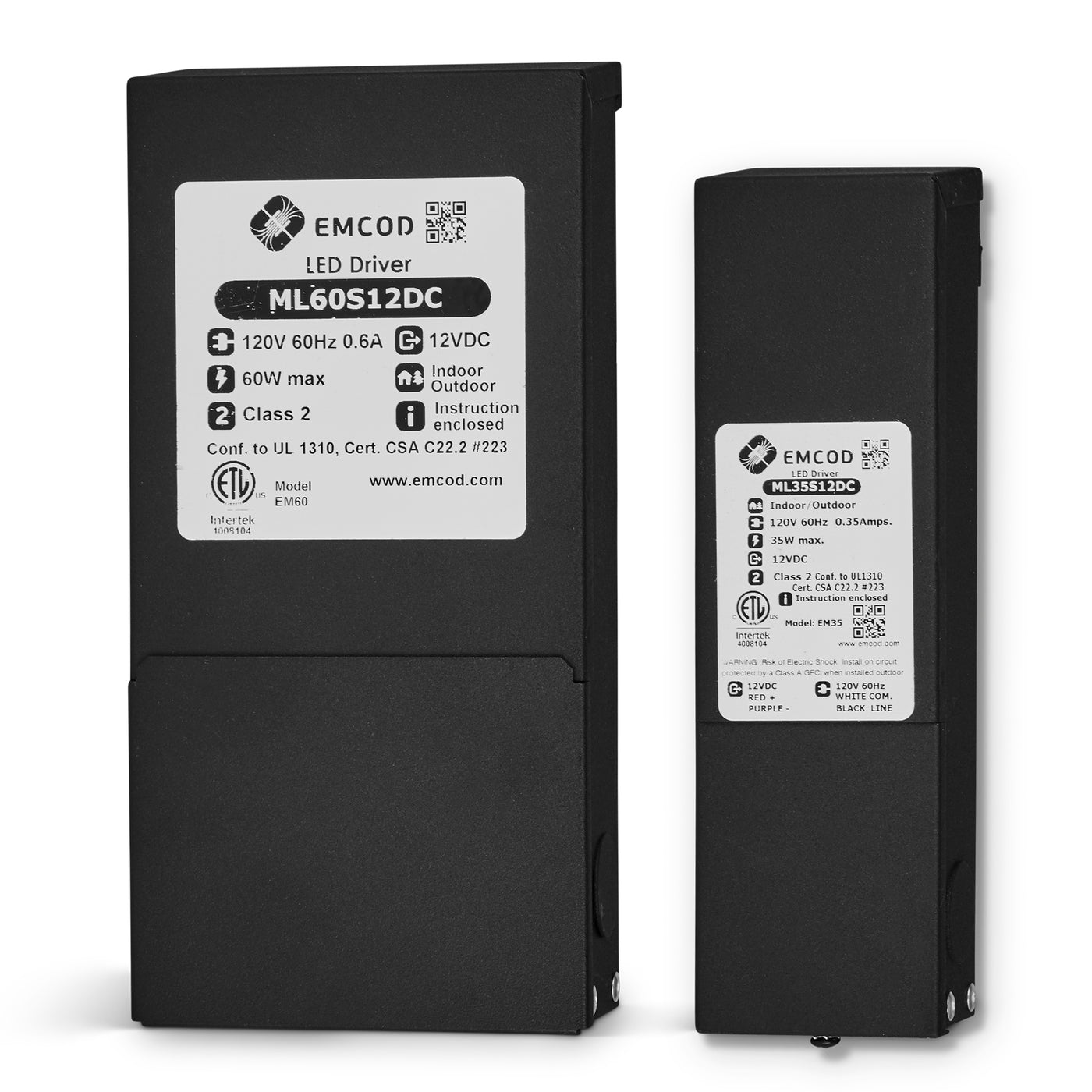

The EMCOD ML Series transformer is one of the most popular magnetic LED Driver& on the market& due to the low profile design and triac/phase dimmable option. The transformer core and special low drop voltage rectifier are designed to lower losses and makes the ML series very energy efficient with a very low temperature rise. Our ML series comes standard with primary and secondary self-reset thermal circuit breakers, hardwire input and output lead wires. Our transformers can be fully loaded and have excellent load regulation.

Specification

Yellow background with black text 'SPEC' and three horizontal lines above it.

model max load input output dimensions(in)

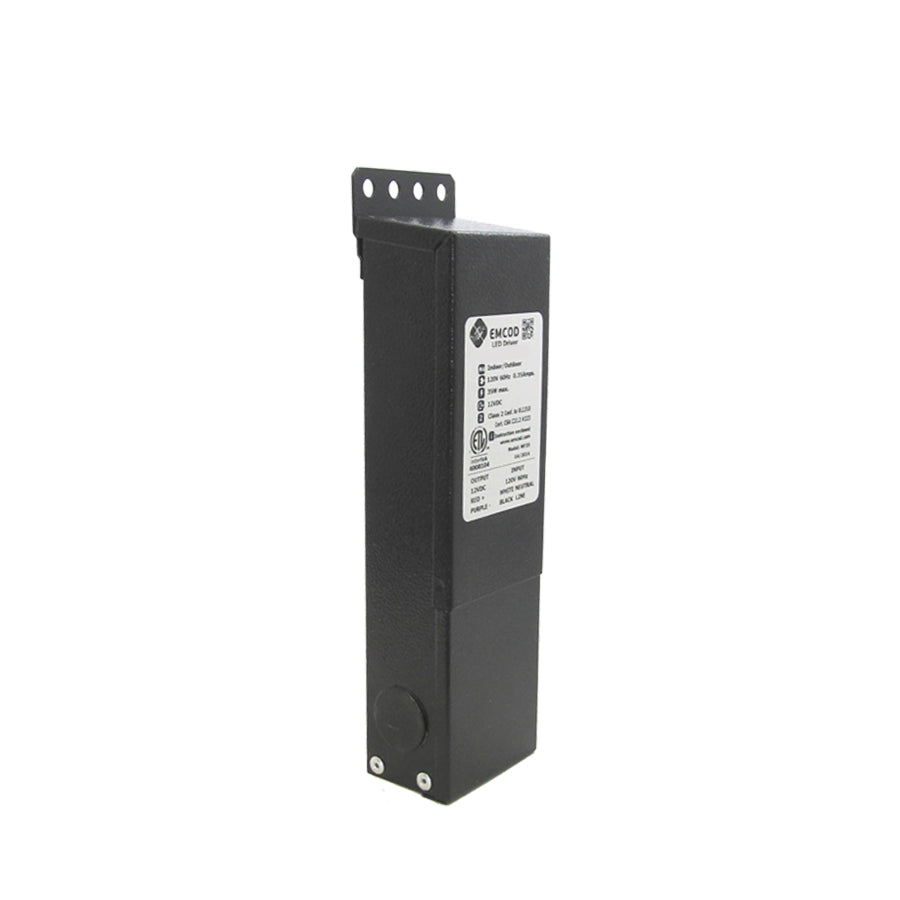

ML10S12DC
 10W 120Vac
 12Vdc 7x2.11x1.54
ML20S12DC
 20W 120Vac 12Vdc 7x2.11x1.54
ML35S12DC 35W 120Vac 12Vdc 7x2.11x1.54

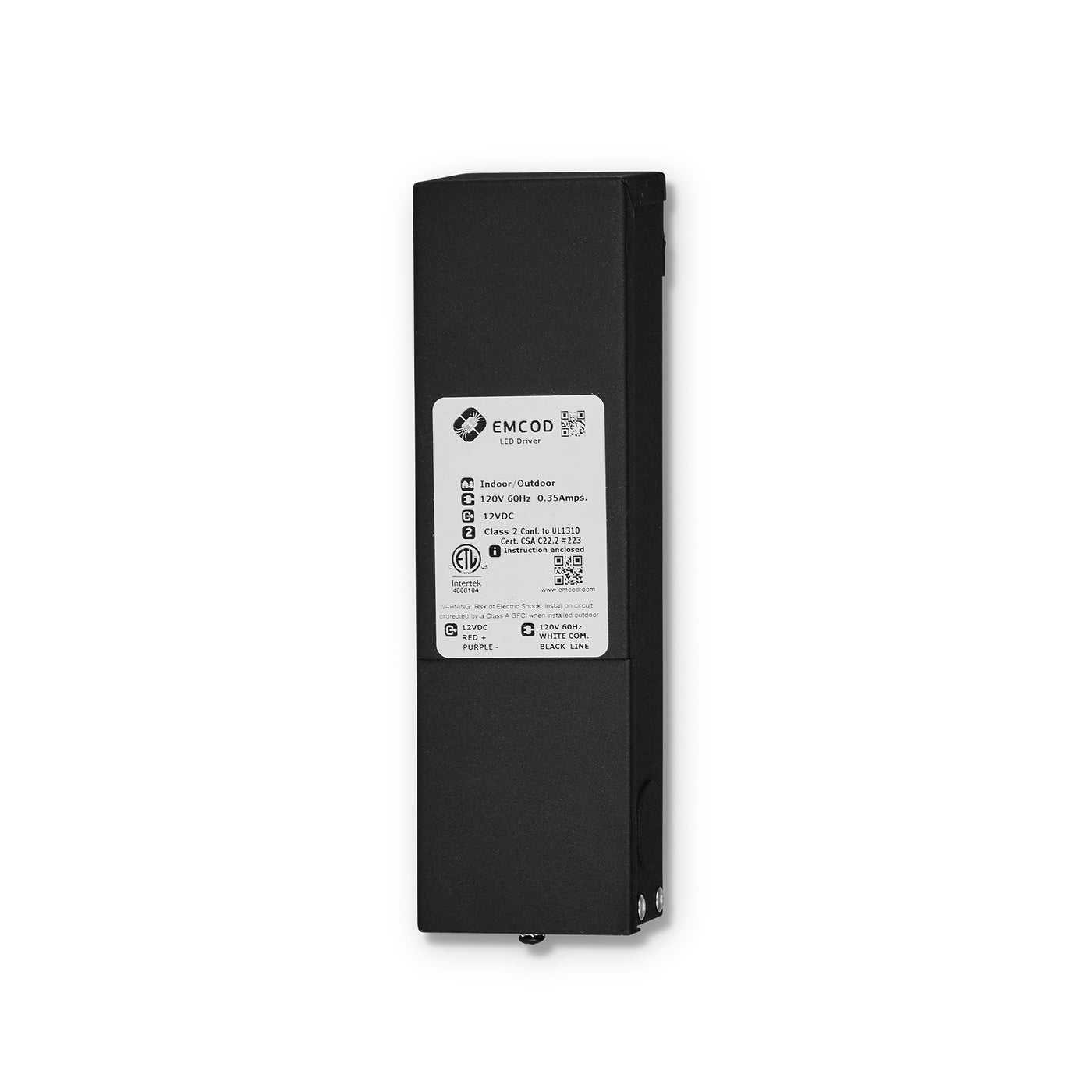

ML40S12DC 40W 120Vac 12Vdc 7x2.11x1.54
ML50S12DC 50W 120Vac 12Vdc 7x2.11x1.54

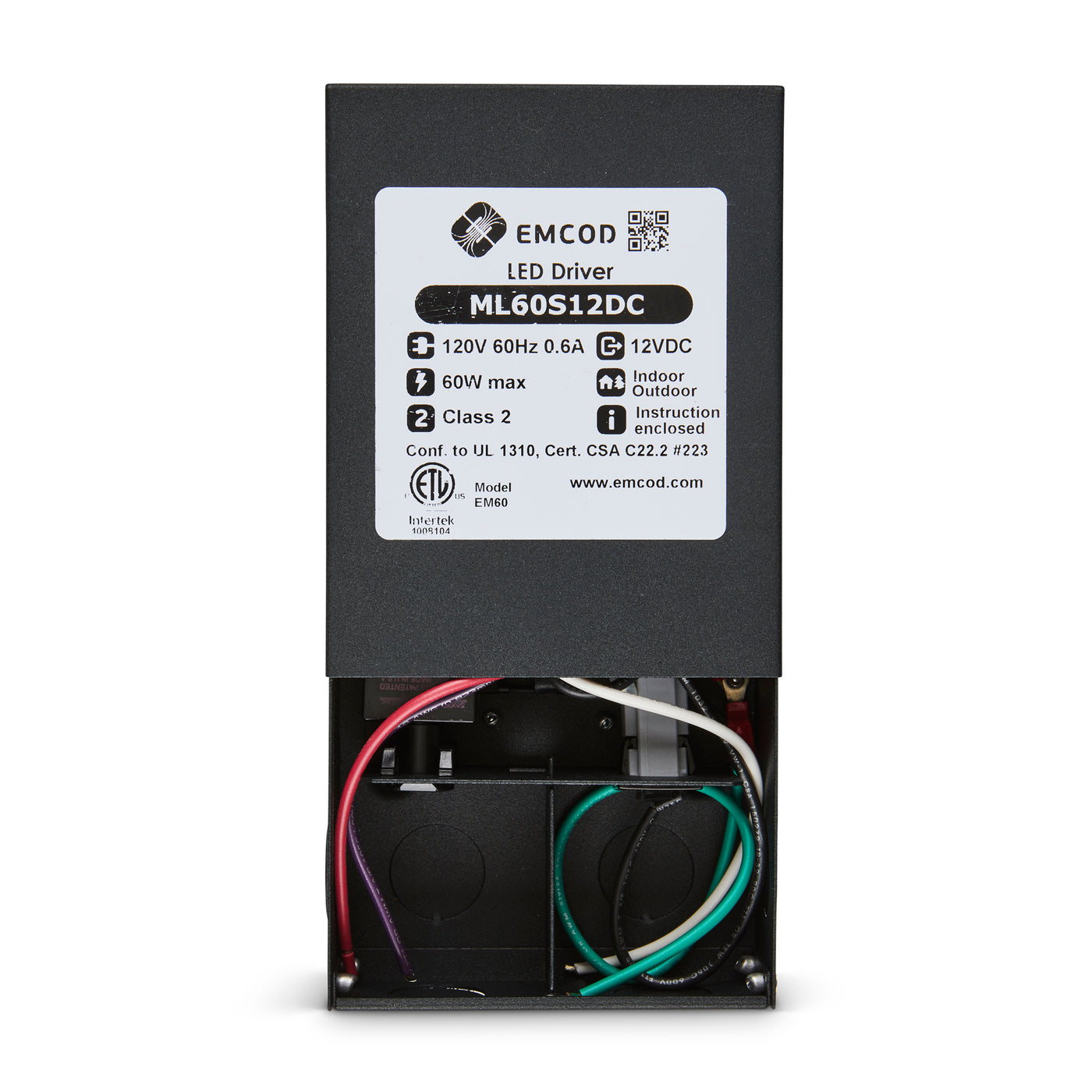

ML60S12DC 60W 120Vac 12Vdc 8.13x3.93x1.59
ML75S12DC 75W 120Vac 12Vdc 8.13x3.93x1.59
ML100S12DC 100W 120Vac 12Vdc 8.13x3.93x1.59




Key Feature

💡 Dimmable with compatible MLV, ELV, CL dimmers

💡 Temperature class B(130°C) Input leads are 18AWG 600V

💡 Output leads are 18AWG 300V

💡 Leads max. operational temperature is 105°C

💡 Thermal self reset primary breaker

💡 Thermal self reset secondary breaker

Spec Sheet
