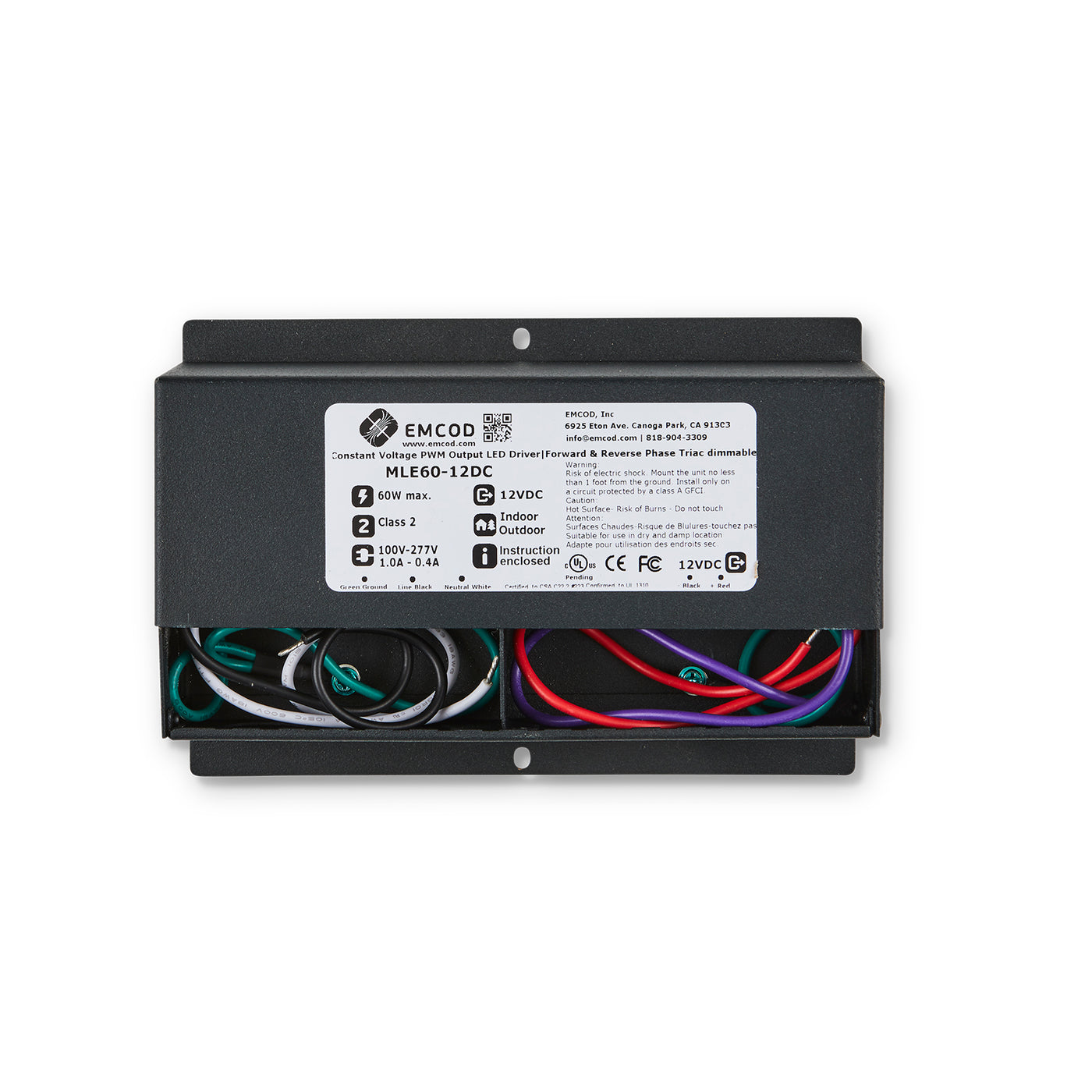

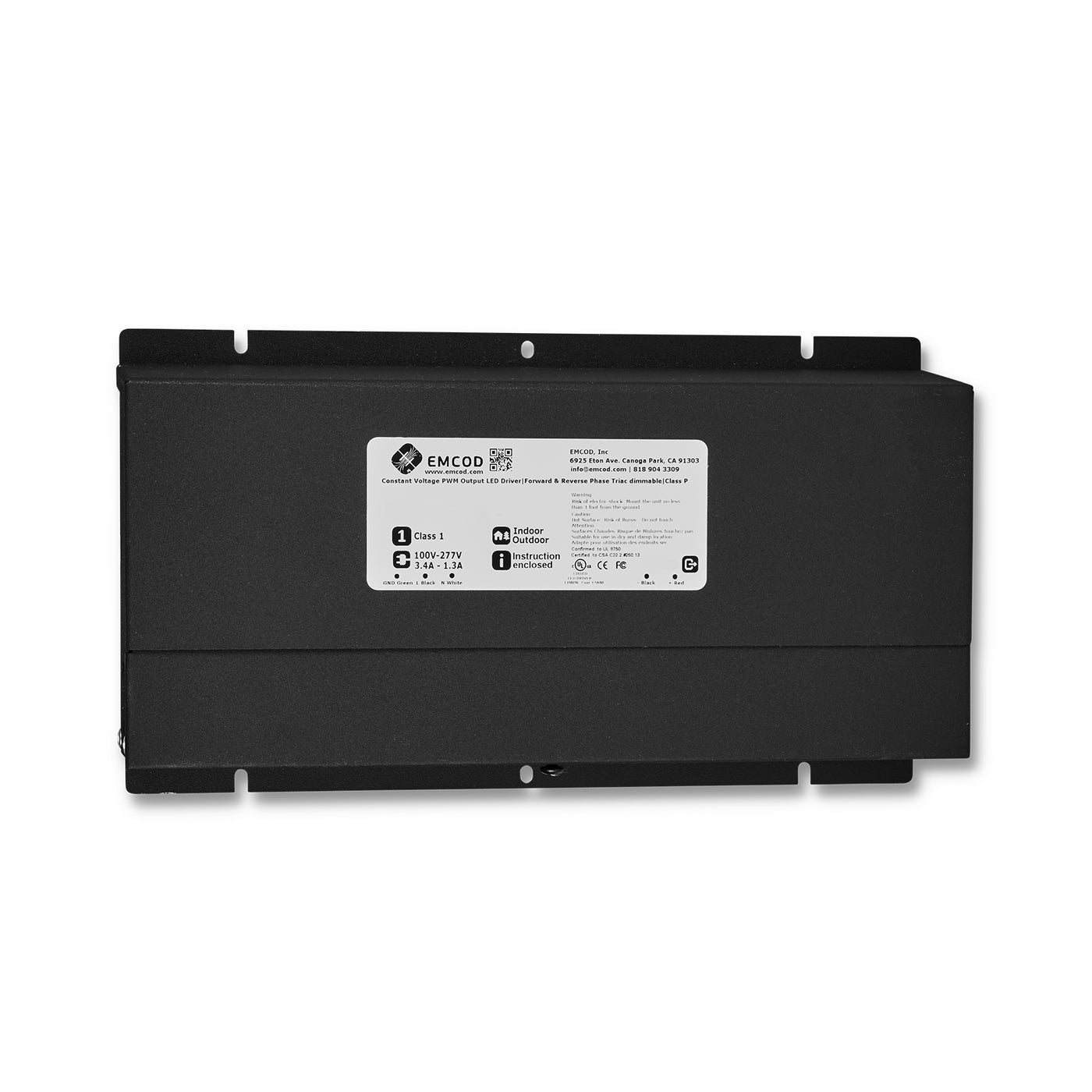

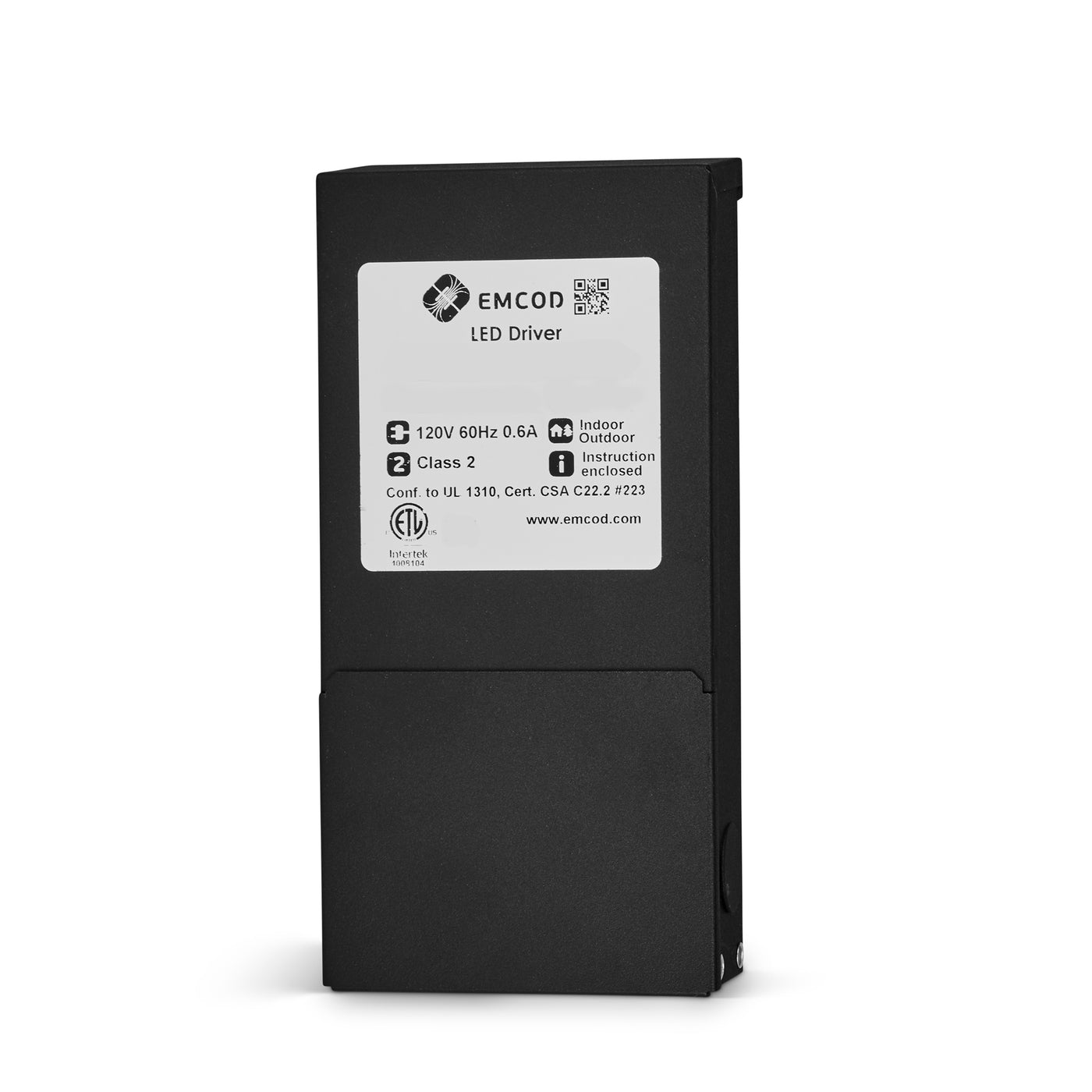

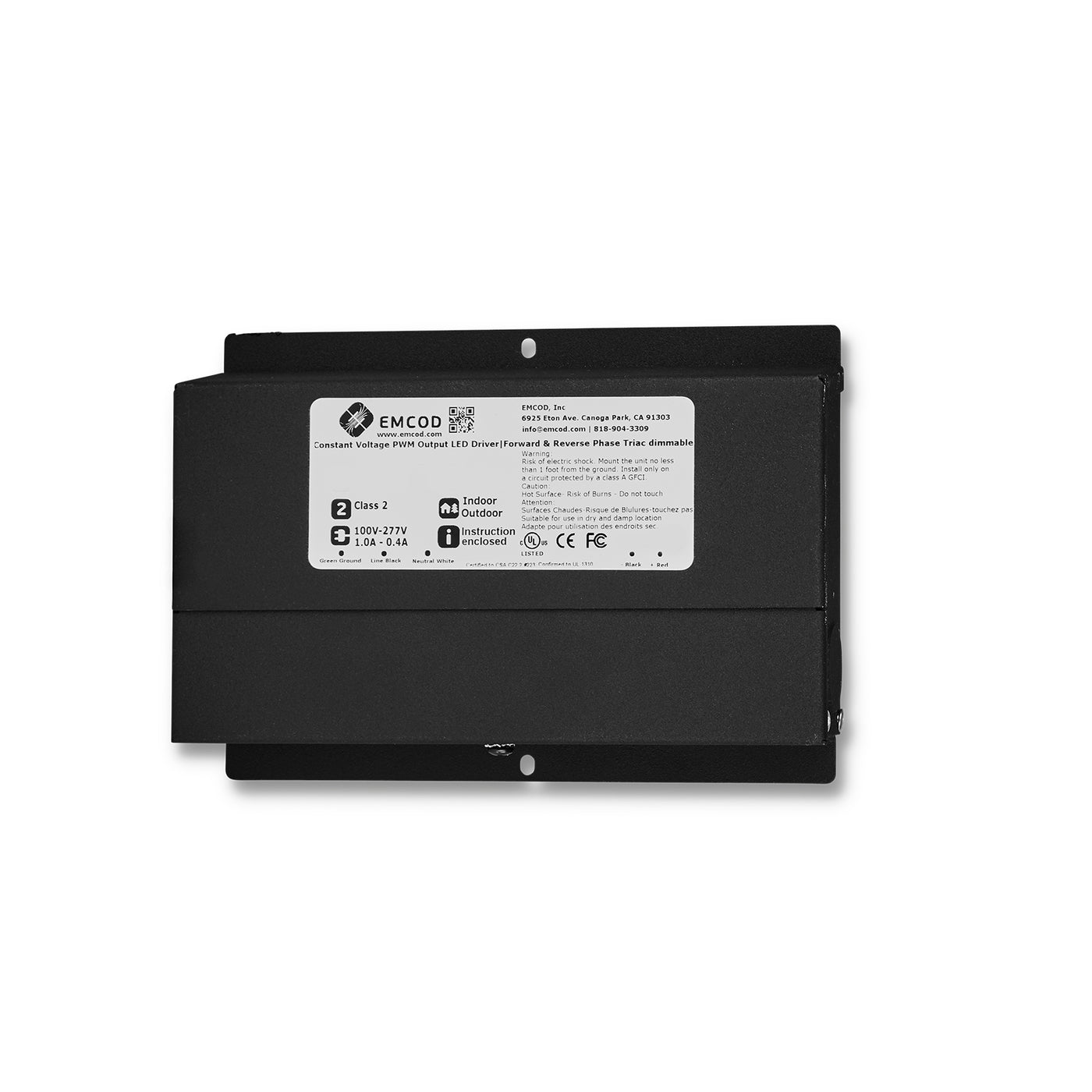

EMCOD MLE series transformer, LED Electronic Driver, 110-277Vac input/12Vdc output, constant voltage, triac dimmable
EMCOD MLE series transformer, LED Electronic Driver, 110-277Vac input/12Vdc output, constant voltage, triac dimmable
EMCOD MLE series transformer, LED Electronic Driver, 110-277Vac input/12Vdc output, constant voltage, triac dimmable
EMCOD MLE series transformer, LED Electronic Driver, 110-277Vac input/12Vdc output, constant voltage, triac dimmable
EMCOD MLE series transformer, LED Electronic Driver, 110-277Vac input/12Vdc output, constant voltage, triac dimmable
EMCOD MLE series transformer, LED Electronic Driver, 110-277Vac input/12Vdc output, constant voltage, triac dimmable
EMCOD MLE series transformer, LED Electronic Driver, 110-277Vac input/12Vdc output, constant voltage, triac dimmable
EMCOD MLE series transformer, LED Electronic Driver, 110-277Vac input/12Vdc output, constant voltage, triac dimmable

EMCOD MLE series transformer, LED Electronic Driver, 110-277Vac input/12Vdc output, constant voltage, triac dimmable

SKU: MLE30-12DC
Price
$78.30
Taxes and shipping calculated at checkout
Model: 30 watts

Product variant with selected options does not exist!
In stock and ready for shipping

Frequently Bought Together

We Accept

American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Visa

About This Item

The EMCOD MLE - MINI-LED ELECTRONIC EMCOD MLE Series is Constant Voltage, PWM output, Triac (Phase) Dimmable Electronic LED Driver for Forward and Reverse Phase Dimmers. 5% minimum load. Over load, Short circuit protection. Excellent Line and Load regulation. Wide variety of compatible dimmers, flicker free dimming.

Specification

Yellow background with black text 'SPEC' and three horizontal lines above it.

model max.load class2 input output dimensions(in)
MLE30-12DC 30W Y 110-277Vac
 12Vdc 6.5x3.62x1.02
MLE60-12DC 60W Y 110-277Vac 12Vdc 7.4x3.62x1.02
MLE80-12DC 80W N 110-277Vac 12Vdc 7.8x3.66x1.61
MLE100-12DC 100W Y 110-277Vac 12Vdc 7.8x3.66x1.61
MLE120-12DC 120W N 110-277Vac 12Vdc 7.8x3.66x1.61
MLE150-12DC 150W N 110-277Vac 12Vdc 10.3x4.06x1.77
MLE200-12DC 200W N 110-277Vac 12Vdc 10.3x4.06x1.77
MLE300-12DC 300W N 110-277Vac 12Vdc 10.94x4.25x1.77





Key Feature

💡 PWM output. Dimmable with any ELV, MLV, CL, forward or reverse phase.
💡 Input leads are 18AWG 600V
💡 Output leads are 16AWG 300V
💡 Leads max. operational temperature is 105°C

Spec Sheet
