  2. EMCOD MLE-UD Series 5 Dimming Types Transformer, Main-LED Electronic Driver, 110-277Vac input/12Vdc output, constant voltage

EMCOD MLE-UD Series 5 Dimming Types Transformer, Main-LED Electronic Driver, 110-277Vac input/12Vdc output, constant voltage

Product Description
Model
$74.39
Maximum quantity available reached.

The EMCOD MLE-UD Series is an Universal Constant Voltage, PWM output, Triac (Phase), 0/1-10V, Resistor, PWM Control, 5 Dimming types Electronic LED Driver. 5% minimum load. Overload, Short circuit protection. Excellent Line and Load regulation. Wide variety of compatible dimmers, flicker free dimming. Dry, Damp and Wet Location.



EMCOD MLE-UD Series 5 Dimming Types Transformer, Main-LED Electronic Driver, 110-277Vac input/12Vdc output, constant voltage




model max.load class2 input output dimensions(in)

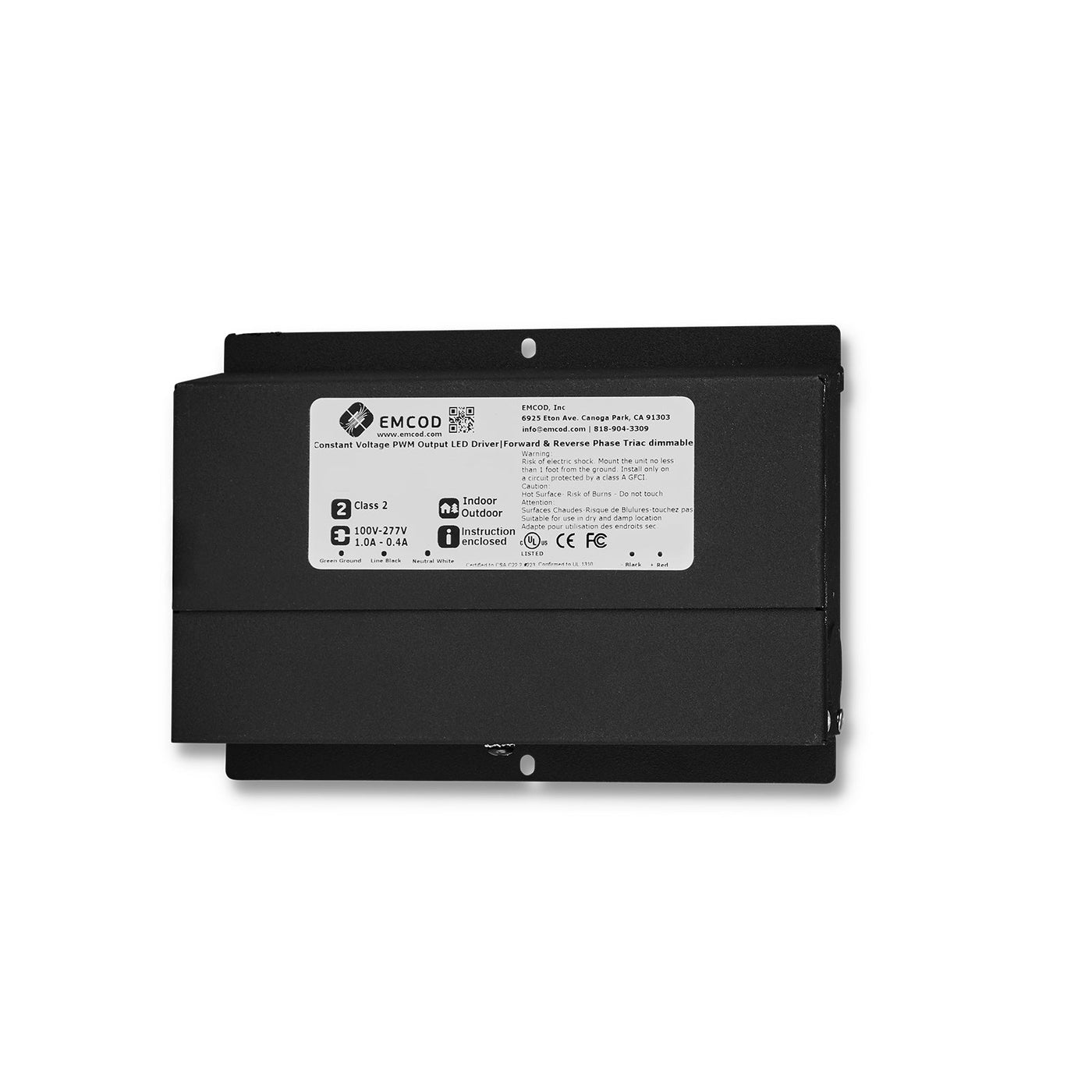

MLE30-12DC-UD 30W Y 110-277Vac, 50/60Hz
 12Vdc 6.5x3.62x1.02

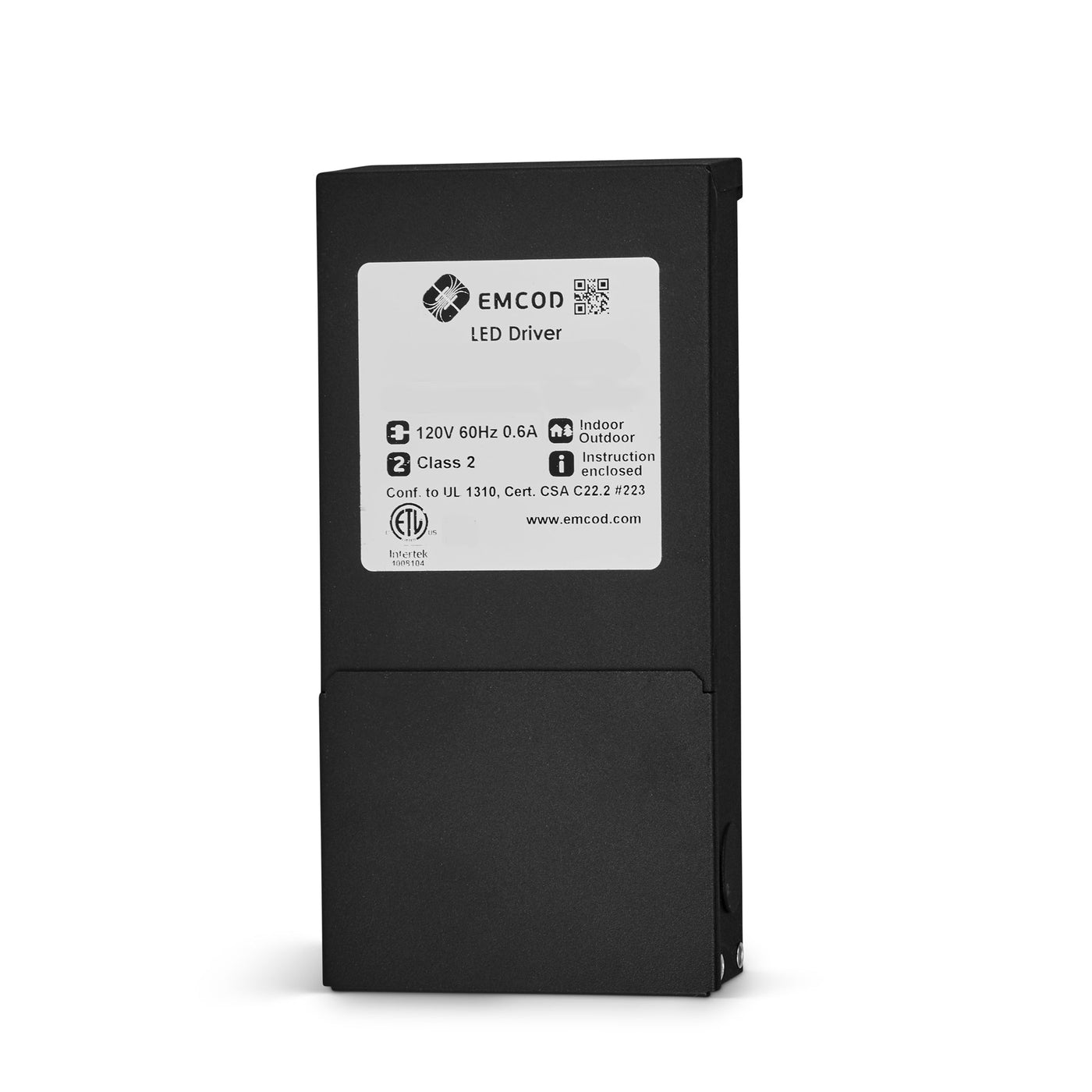

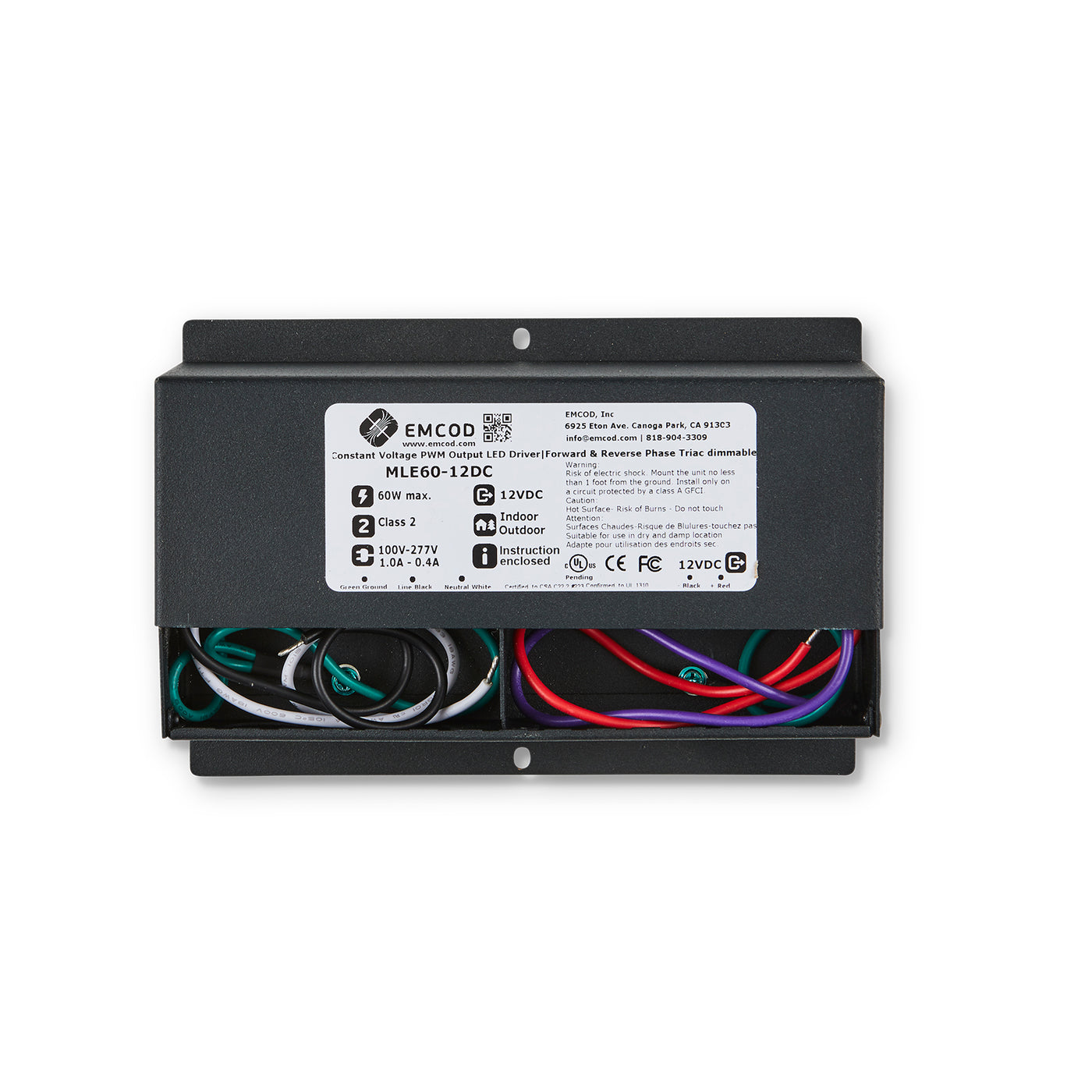

MLE60-12DC-UD 60W Y 110-277Vac, 50/60Hz 12Vdc 7.4x3.62x1.02
MLE80-12DC-UD 80W N 110-277Vac, 50/60Hz 12Vdc 7.8x3.66x1.61
MLE100-12DC-UD 100W Y 110-277Vac, 50/60Hz 12Vdc 7.8x3.66x1.61
MLE120-12DC-UD 120W N 110-277Vac, 50/60Hz 12Vdc 7.8x3.66x1.61
MLE150-12DC-UD 150W N 110-277Vac, 50/60Hz 12Vdc 10.3x4.06x1.77
MLE200-12DC-UD 200W N 110-277Vac, 50/60Hz 12Vdc 10.3x4.06x1.77

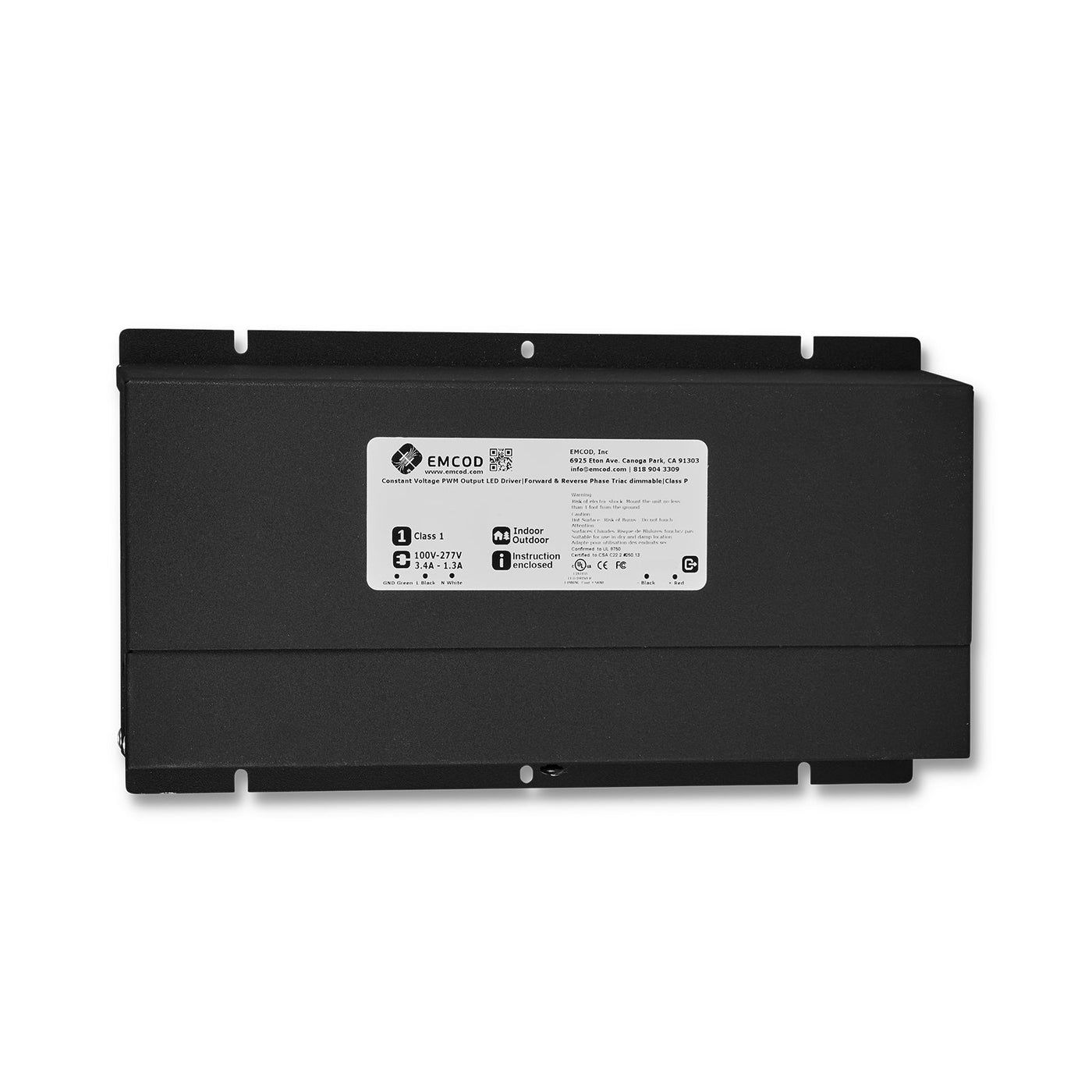

MLE300-12DC-UD 300W N 110-277Vac, 50/60Hz 12Vdc 10.94x4.25x1.77






• PWM output. Dimmable with any ELV, MLV, CL, forward or reverse phase.
• Input leads are 18AWG 600V
• Output leads are 16AWG 300V
• Leads max. operational temperature is 105°C





Sku: MLE30-12DC-UD
Vendor: EMCOD
