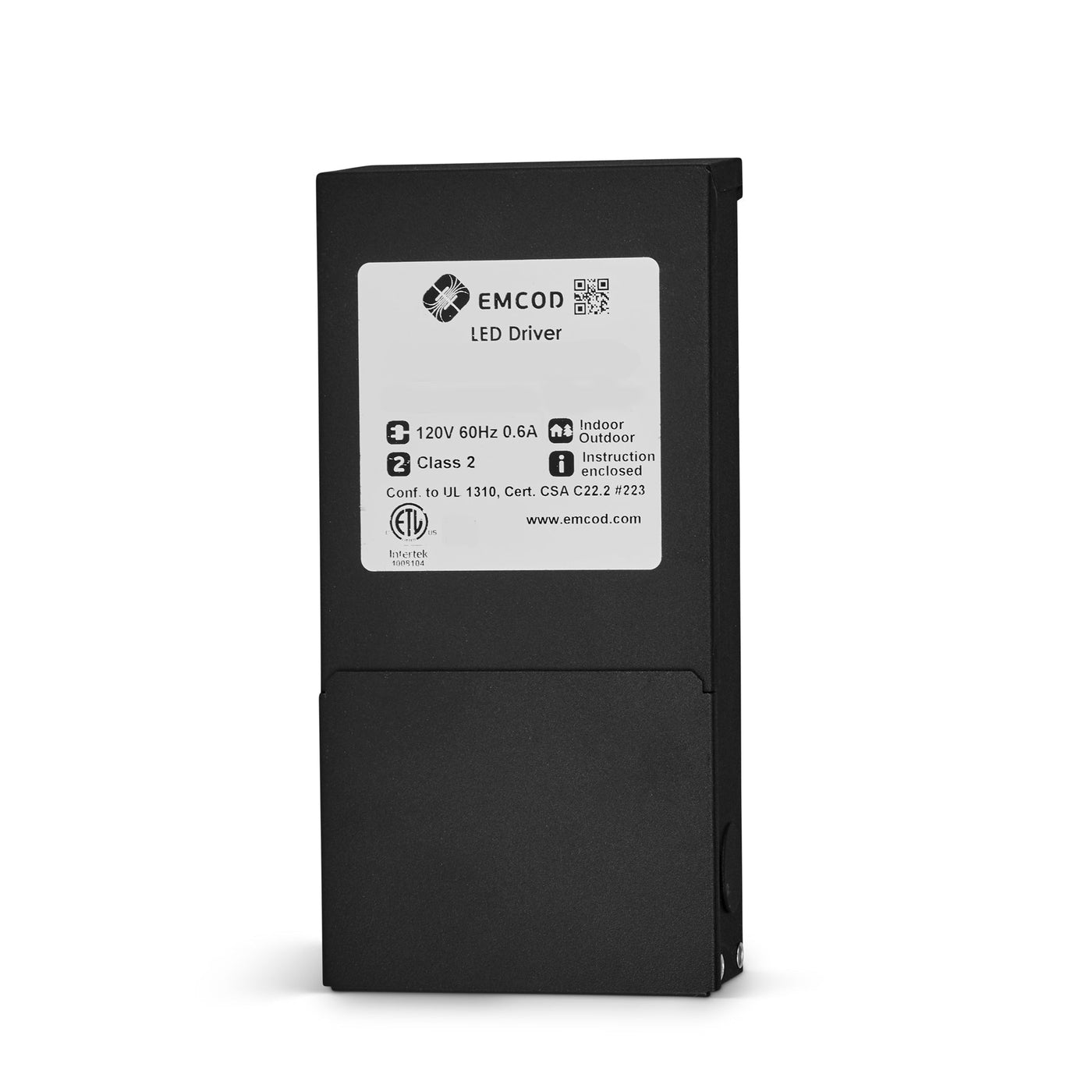

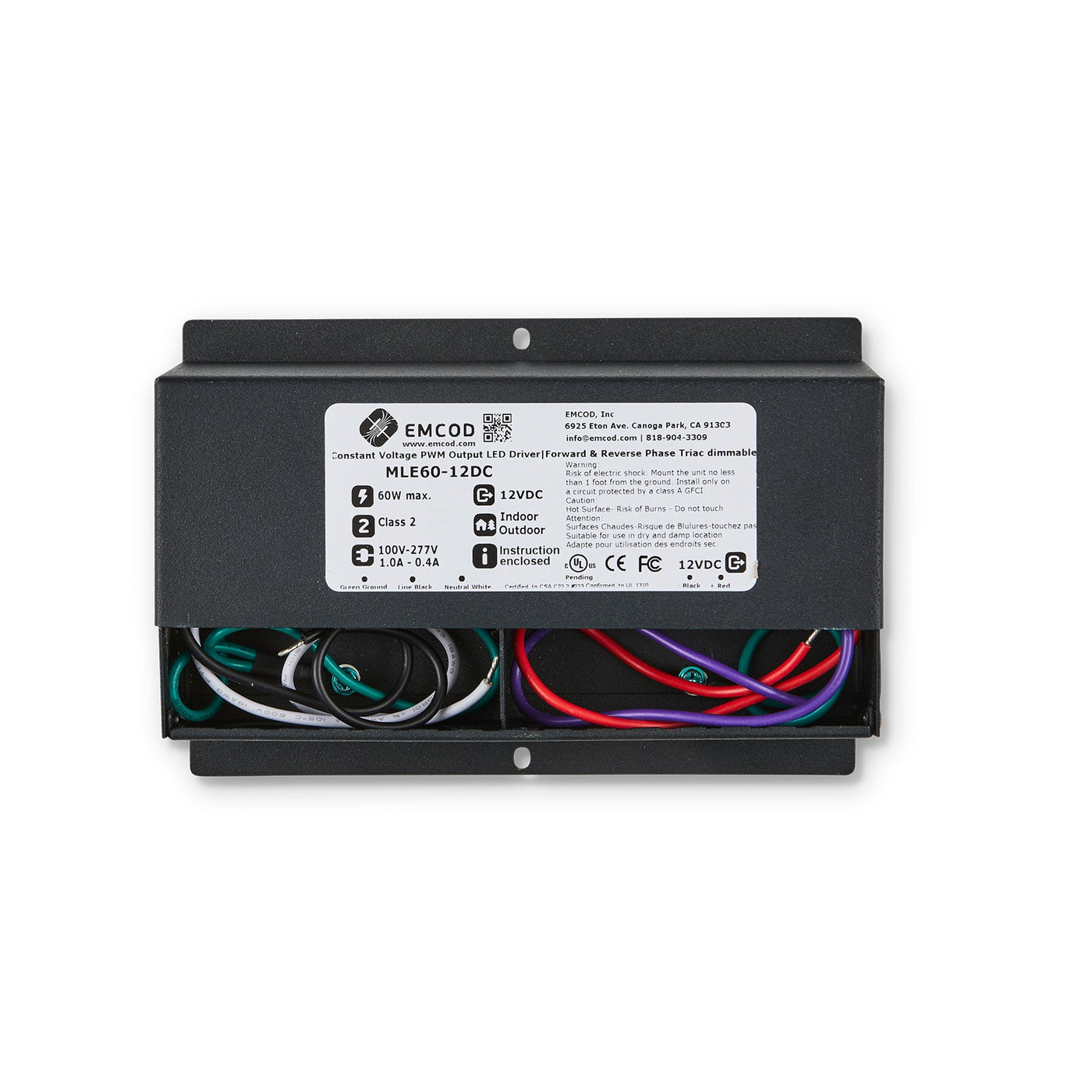

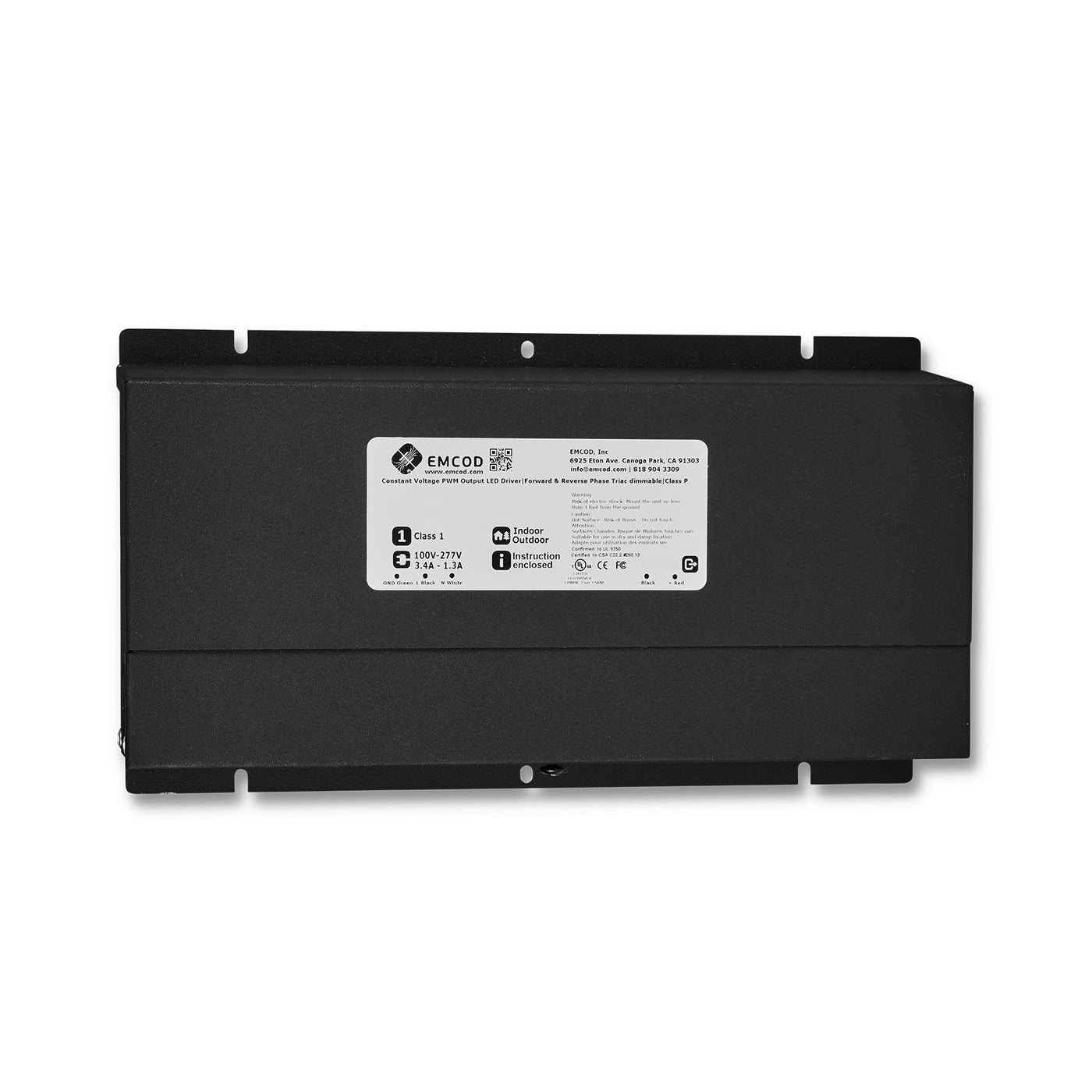

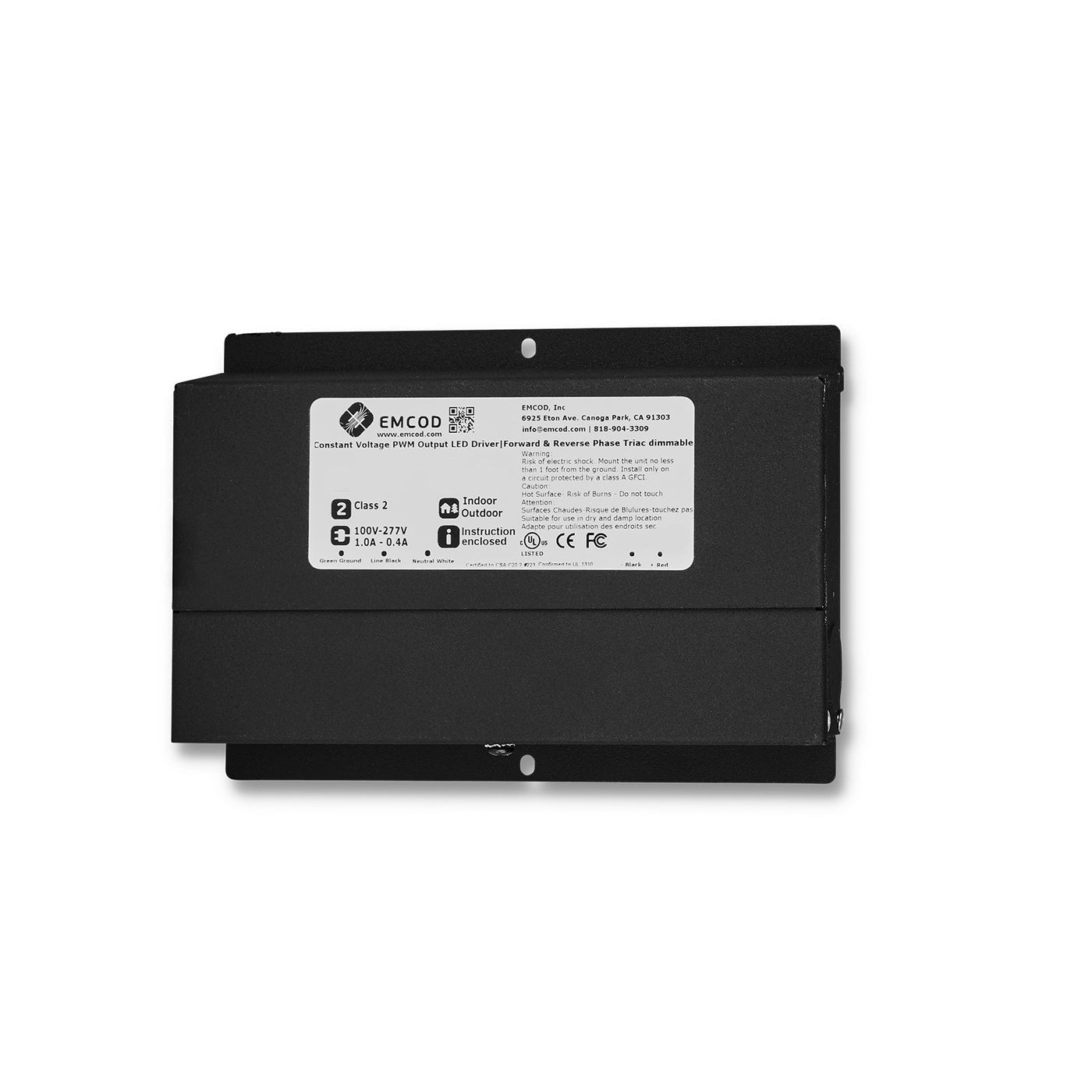

EMCOD MLE-UD Series 5 Dimming Types Transformer, Main-LED Electronic Driver, 110-277Vac input/24Vdc output, constant voltage
EMCOD MLE-UD Series 5 Dimming Types Transformer, Main-LED Electronic Driver, 110-277Vac input/24Vdc output, constant voltage
EMCOD MLE-UD Series 5 Dimming Types Transformer, Main-LED Electronic Driver, 110-277Vac input/24Vdc output, constant voltage
EMCOD MLE-UD Series 5 Dimming Types Transformer, Main-LED Electronic Driver, 110-277Vac input/24Vdc output, constant voltage
EMCOD MLE-UD Series 5 Dimming Types Transformer, Main-LED Electronic Driver, 110-277Vac input/24Vdc output, constant voltage
EMCOD MLE-UD Series 5 Dimming Types Transformer, Main-LED Electronic Driver, 110-277Vac input/24Vdc output, constant voltage
EMCOD MLE-UD Series 5 Dimming Types Transformer, Main-LED Electronic Driver, 110-277Vac input/24Vdc output, constant voltage
EMCOD MLE-UD Series 5 Dimming Types Transformer, Main-LED Electronic Driver, 110-277Vac input/24Vdc output, constant voltage

EMCOD MLE-UD Series 5 Dimming Types Transformer, Main-LED Electronic Driver, 110-277Vac input/24Vdc output, constant voltage

SKU: MLE30-24DC-UD
Price
$89
Taxes and shipping calculated at checkout
Model: 30 watts

Product variant with selected options does not exist!
In stock and ready for shipping

Frequently Bought Together

We Accept

American Express
Apple Pay
Diners Club
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Visa

About This Item

Specification

The EMCOD MLE-UD Series is an Universal Constant Voltage, PWM output, Triac (Phase), 0/1-10V, Resistor, PWM Control, 5 Dimming types Electronic LED Driver. 5% minimum load. Overload, Short circuit protection. Excellent Line and Load regulation. Wide variety of compatible dimmers, flicker free dimming. Dry, Damp and Wet Location.



EMCOD MLE-UD Series 5 Dimming Types Transformer, Main-LED Electronic Driver, 110-277Vac input/24Vdc output, constant voltage




model max.load class2 input output dimensions(in)
MLE30-24DC-UD 30W Y 110-277Vac, 50/60Hz
 24Vdc 4.47x6.79x1.38
MLE60-24DC-UD 60W Y 110-277Vac, 50/60Hz 24Vdc 4.47x6.79x1.38
MLE80-24DC-UD 80W Y 110-277Vac, 50/60Hz 24Vdc 5.16x7.73x1.54
MLE96-24DC-UD 96W Y 110-277Vac, 50/60Hz 24Vdc 5.16x7.73x1.54
MLE120-24DC-UD 120W N 110-277Vac, 50/60Hz 24Vdc 5.16x7.73x1.54
MLE150-24DC-UD 150W N 110-277Vac, 50/60Hz 24Vdc 5.2x9.99x1.82
MLE200-24DC-UD 200W N 110-277Vac, 50/60Hz 24Vdc 5.2x9.99x1.82
MLE300-24DC-UD 300W N 110-277Vac, 50/60Hz 24Vdc 5.2x9.99x1.82






• PWM output. Dimmable with any ELV, MLV, CL, forward or reverse phase.
• Input leads are 18AWG 600V
• Output leads are 16AWG 300V
• Leads max. operational temperature is 105°C





Key Feature
